- Part Number

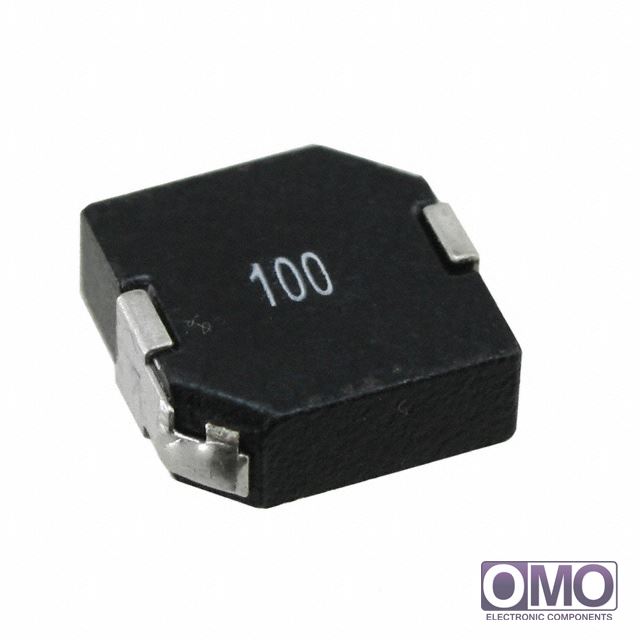

PM13560S-100M
- Manufacturer
Bourns Inc.
- Description
- FIXED IND 10UH 7.5A 14.9 MOHM
- Category
- Inductors, Coils, Chokes
- Family
- Fixed Inductors
- To learn about the specification of PM13560S-100M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add PM13560S-100M with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of PM13560S-100M.
- We are offering PM13560S-100M for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PM13560S-100M
| Packaging | Tape & Reel (TR) | |
| Type | Wirewound | |
| Material - Core | Iron | |
| Inductance | 10µH | |
| Tolerance | ±20% | |
| Current Rating | 7.5A | |
| Current - Saturation | - | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 14.9 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Operating Temperature | -40°C ~ 150°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.547" L x 0.531" W (13.90mm x 13.50mm) | |
| Height - Seated (Max) | 0.232" (5.90mm) | |
| Supplier Device Package | - | |
| Other Names | M1284TR | |
| call me | [email protected] | |
