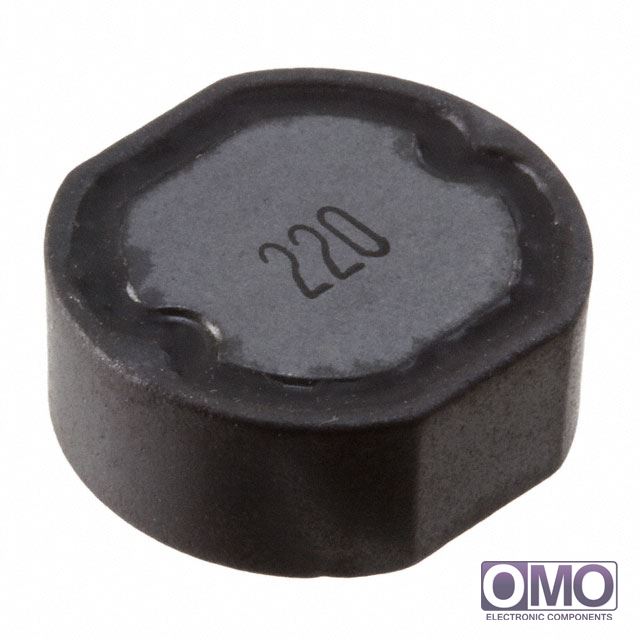

PM125S-220M-RC

View larger image

Part Number

PM125S-220M-RC

Manufacturer

Description
FIXED IND 22UH 2.2A 70 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of PM125S-220M-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add PM125S-220M-RC with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of PM125S-220M-RC.
  • We are offering PM125S-220M-RC for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PM125S-220M-RC
PackagingCut Tape (CT)
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±20%
Current Rating2.2A
Current - Saturation4.04A
ShieldingShielded
DC Resistance (DCR)70 mOhm Max
Q @ Freq-
Frequency - Self Resonant15MHz
Operating Temperature-40°C ~ 125°C
Frequency - Test2.52MHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.496" L x 0.457" W (12.60mm x 11.60mm)
Height - Seated (Max)0.233" (5.90mm)
Supplier Device Package-
Other NamesPM125S-220M-RCCT
