Part Number

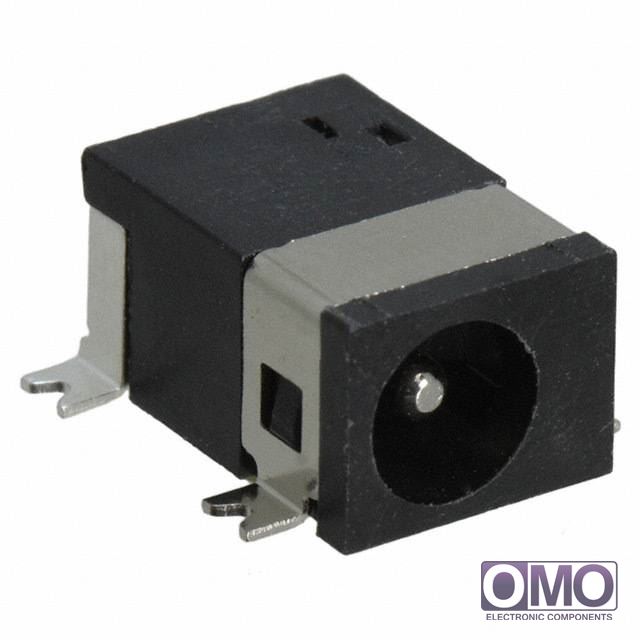

PJ-075DH-SMT-TR

Manufacturer

Description
CONN PWR JACK 1.3X3.4MM SMT
Category
Connectors, Interconnects
Family
Barrel - Power Connectors

  • To learn about the specification of PJ-075DH-SMT-TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add PJ-075DH-SMT-TR with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of PJ-075DH-SMT-TR.
  • We are offering PJ-075DH-SMT-TR for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PJ-075DH-SMT-TR
Connector TypeJack
GenderMale
Plug/Mating Plug Diameter1.35mm ID, 3.5mm OD
Number of Positions/Contacts3 Conductors, 3 Contacts
Internal Switch(s)Single Switch, Normally Closed
Mounting TypeSurface Mount, Right Angle
TerminationSolder
ShieldingUnshielded
FeaturesBoard Guide
ColorBlack
Voltage - Rated16VDC
Current Rating3.5A
Contact MaterialBrass
Contact Material - PlatingSilver
Housing ColorBlack
Housing MaterialPolyamide (PA6T), Nylon 6T
Operating Temperature-25°C ~ 85°C
Other NamesCP-075DCPJTR
CP-075DCPJTR-ND
PJ-075DC-SMT
PJ075DHSMTTR
