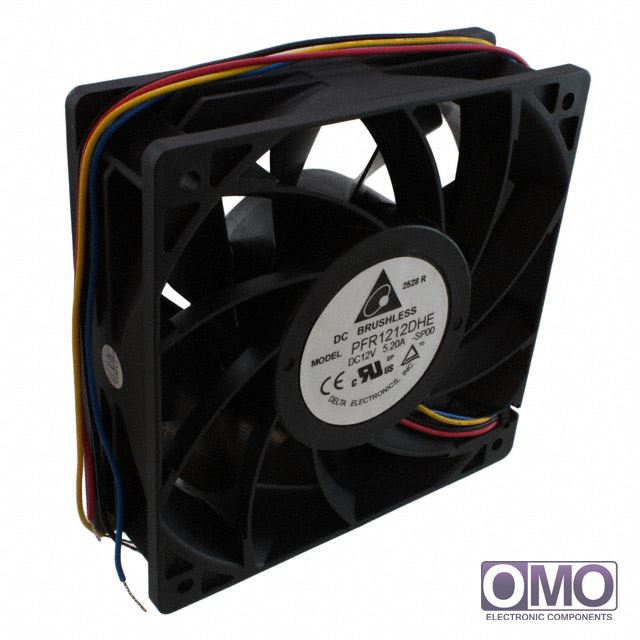

PFR1212DHE-SP00

To learn about the specification of PFR1212DHE-SP00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PFR1212DHE-SP00 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of PFR1212DHE-SP00.
We are offering PFR1212DHE-SP00 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of PFR1212DHE-SP00

Voltage - Rated	12VDC
Size / Dimension	Square - 120mm L x 120mm H x 38mm W
Air Flow	254.3 CFM (7.20m³/min)
Static Pressure	1.438 in H2O (358.2 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	68.5 dB(A)
Power (Watts)	44.4W
RPM	7400 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	0.904 lb (410.05g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	3.7A
Voltage Range	8 ~ 13.2VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1706 PFR1212DHESP00
