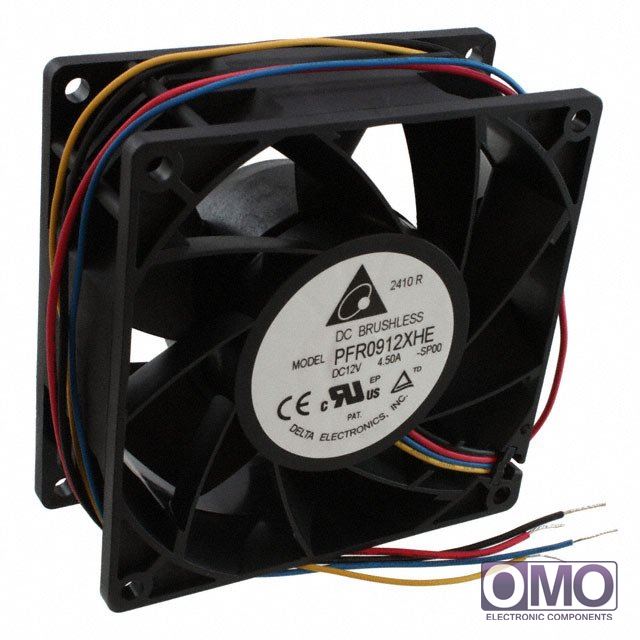

PFR0912XHE-SP00

To learn about the specification of PFR0912XHE-SP00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PFR0912XHE-SP00 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of PFR0912XHE-SP00.
We are offering PFR0912XHE-SP00 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of PFR0912XHE-SP00

Voltage - Rated	12VDC
Size / Dimension	Square - 92mm L x 92mm H x 38mm W
Air Flow	185.5 CFM (5.25m³/min)
Static Pressure	2.523 in H2O (628.5 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	71 dB(A)
Power (Watts)	44.4W
RPM	11500 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	0.573 lb (259.91g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	3.7A
Voltage Range	7 ~ 13.2VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1707 PFR0912XHESP00
