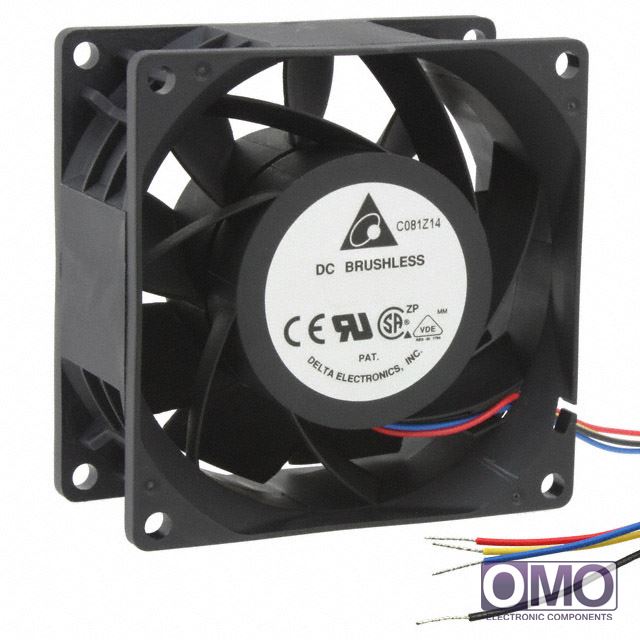

PFC0812DE-SP07

To learn about the specification of PFC0812DE-SP07, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PFC0812DE-SP07 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of PFC0812DE-SP07.
We are offering PFC0812DE-SP07 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of PFC0812DE-SP07

Voltage - Rated	12VDC
Size / Dimension	Square - 80mm L x 80mm H x 38mm W
Air Flow	86.5 CFM (2.45m³/min)
Static Pressure	0.895 in H2O (222.9 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	54.4 dB(A)
Power (Watts)	9.60W
RPM	6000 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	0.452 lb (205.02g)
Operating Temperature	14 ~ 140°F (-10 ~ 60°C)
Current Rating	0.800A
Voltage Range	7 ~ 13.2VDC
Life Expectancy	50000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1167 PFC0812DESP07
