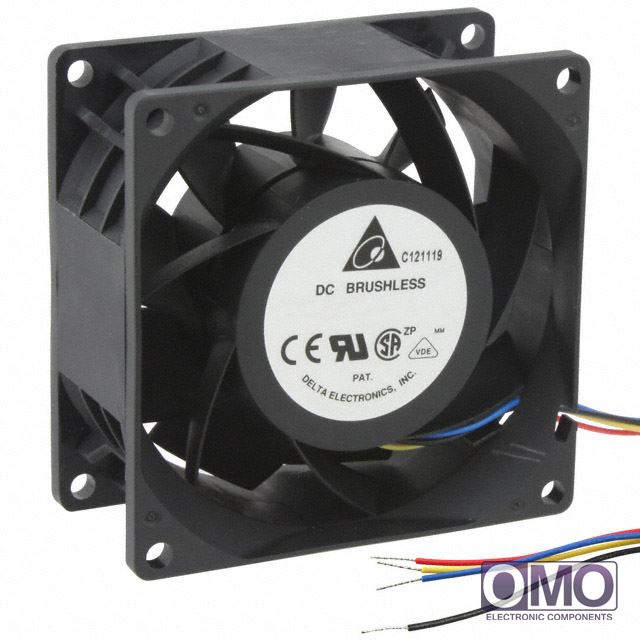

PFC0812DE-SP04

To learn about the specification of PFC0812DE-SP04, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PFC0812DE-SP04 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of PFC0812DE-SP04.
We are offering PFC0812DE-SP04 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of PFC0812DE-SP04

Voltage - Rated	12VDC
Size / Dimension	Square - 80mm L x 80mm H x 38mm W
Air Flow	132.6 CFM (3.76m³/min)
Static Pressure	2.030 in H2O (505.7 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	65 dB(A)
Power (Watts)	33.0W
RPM	9000 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	0.452 lb (205.02g)
Operating Temperature	14 ~ 140°F (-10 ~ 60°C)
Current Rating	2.75A
Voltage Range	10.8 ~ 13.2VDC
Life Expectancy	50000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1166 PFC0812DESP04
