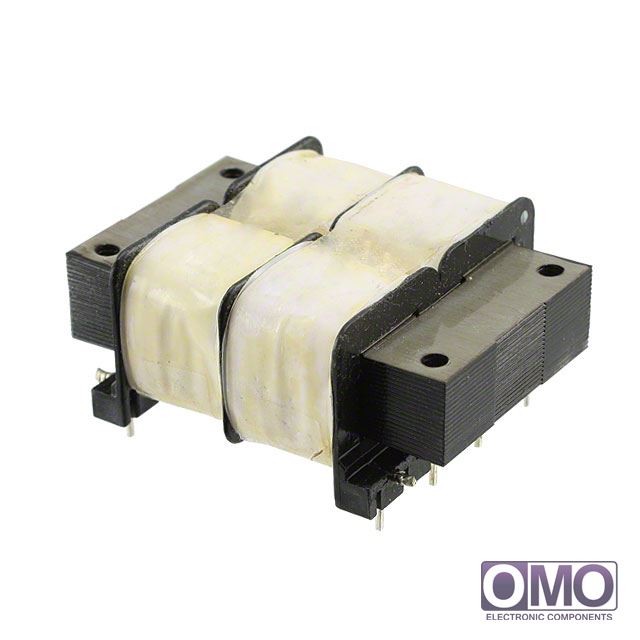

- Part Number
PF24-24
- Manufacturer
Tamura
- Description
- XFRMR SEMI-TORO 24VA THRU HOLE
- Category
- Transformers
- Family
- Power Transformers
- To learn about the specification of PF24-24, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add PF24-24 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of PF24-24.
- We are offering PF24-24 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PF24-24
| Type | Semi-Toroidal | |
| Voltage - Primary | 115V, 230V | |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V | |
| Current - Output (Max) | Parallel 2A, Series 1A | |
| Primary Winding(s) | Dual | |
| Secondary Winding(s) | Dual | |
| Center Tap | No | |
| Power - Max | 24 VA | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Size / Dimension | 72.00mm L x 58.00mm W | |
| Height - Seated (Max) | 31.80mm | |
| Voltage - Isolation | 1500Vrms | |
| Other Names | MT1120 PF24-24(BOX) PF24-24(BULK) PF2424 | |
