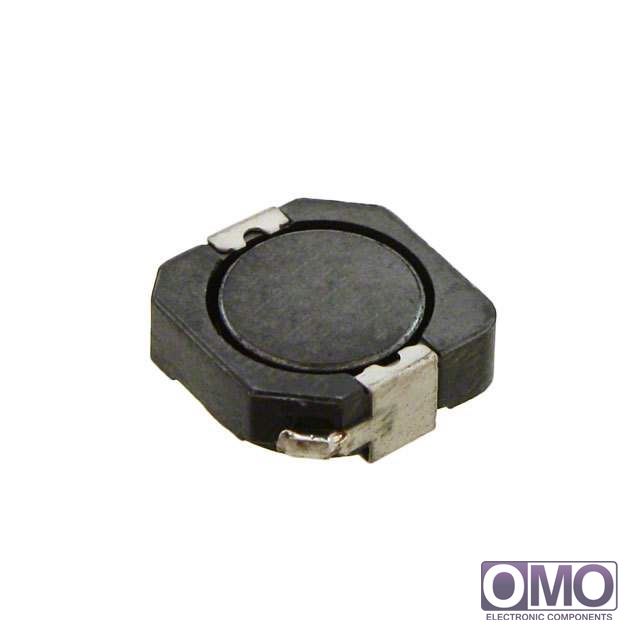

PF0560.522NLT

View larger image

Part Number

PF0560.522NLT

Manufacturer

Description
FIXED IND 5.2UH 5.4A 22 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of PF0560.522NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add PF0560.522NLT with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of PF0560.522NLT.
  • We are offering PF0560.522NLT for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PF0560.522NLT
PackagingTape & Reel (TR)
TypeWirewound
Material - Core-
Inductance5.2µH
Tolerance±30%
Current Rating5.4A
Current - Saturation5.5A
ShieldingShielded
DC Resistance (DCR)22 mOhm Max
Q @ Freq-
Frequency - Self Resonant34MHz
Operating Temperature-40°C ~ 125°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.409" L x 0.406" W (10.40mm x 10.30mm)
Height - Seated (Max)0.157" (4.00mm)
Supplier Device Package-
Other Names553-1748-2
PF0560.522NLT-ND
PF0560522NLT
