- Part Number

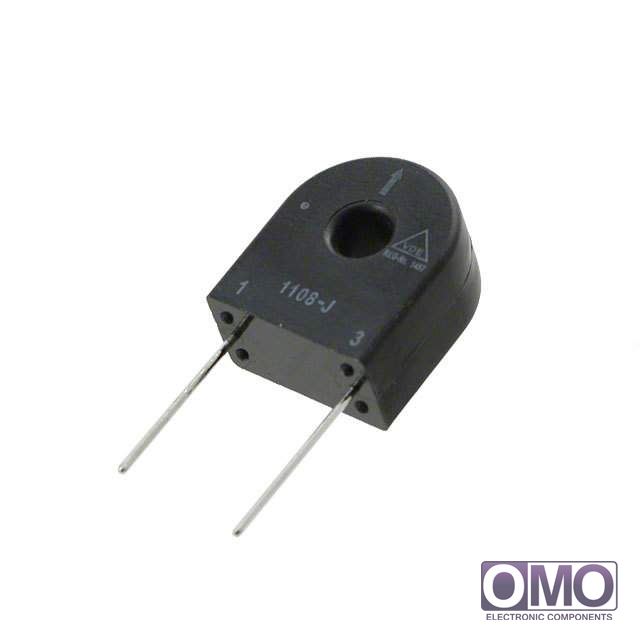

PE-51686NL
- Manufacturer
Pulse Electronics Corporation
- Description
- INDUCTOR CURR SENSE 5.0MH T/H
- Category
- Transformers
- Family
- Current Sense Transformers
- To learn about the specification of PE-51686NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add PE-51686NL with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of PE-51686NL.
- We are offering PE-51686NL for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PE-51686NL
| Turns Ratio - Primary:Secondary | 1 : 50 | |
| Frequency | 20kHz ~ 200kHz | |
| Inductance | 5mH | |
| Current Rating | 20A | |
| DC Resistance (DCR) | 50 Ohm Primary, 700 mOhm Secondary | |
| E.T. | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 22.86mm L x 17.78mm W | |
| Height - Seated (Max) | 17.78mm | |
| Termination Style | PC Pin | |
| Other Names | PE-51686NL-ND PE51686NL | |
| call me | [email protected] | |
