- Part Number

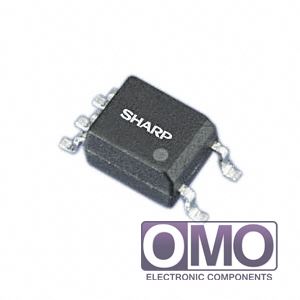

PC353T
- Manufacturer
Sharp Microelectronics
- Description
- OPTOISO 3.75KV TRANS W/BASE 5SMD
- Category
- Isolators
- Family
- Optoisolators - Transistor, Photovoltaic Output
- To learn about the specification of PC353T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add PC353T with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of PC353T.
- We are offering PC353T for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PC353T
| Packaging | Cut Tape (CT) | |
| Number of Channels | 1 | |
| Voltage - Isolation | 3750Vrms | |
| Current Transfer Ratio (Min) | - | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | - | |
| Rise / Fall Time (Typ) | 4µs, 3µs | |
| Input Type | DC | |
| Output Type | Transistor with Base | |
| Voltage - Output (Max) | 80V | |
| Current - Output / Channel | 50mA | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | 200mV | |
| Operating Temperature | -30°C ~ 100°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SOIC (0.173", 4.40mm Width) 5 Leads | |
| Supplier Device Package | 5-SMD | |
| Other Names | 425-1323-1 | |
| call me | [email protected] | |
