- Part Number

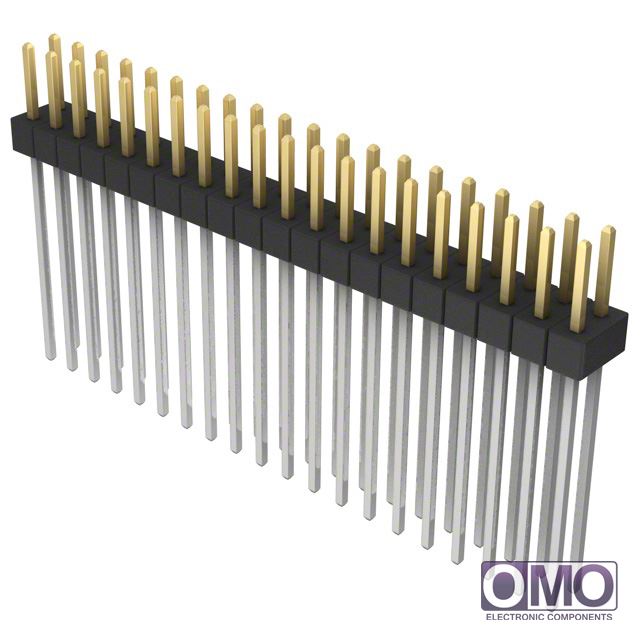

PBC20DAGN
- Manufacturer
Sullins Connector Solutions
- Description
- CONN HEADER .100 DUAL STR 40POS
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of PBC20DAGN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add PBC20DAGN with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of PBC20DAGN.
- We are offering PBC20DAGN for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PBC20DAGN
| Packaging | Bulk | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded, Breakaway | |
| Number of Positions | 40 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | 0.230" (5.84mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Color | Black | |
| Other Names | S2071E-20 | |
| call me | [email protected] | |
