- Part Number
OSTTF031161
- Manufacturer
On-Shore Technology, Inc.
- Description

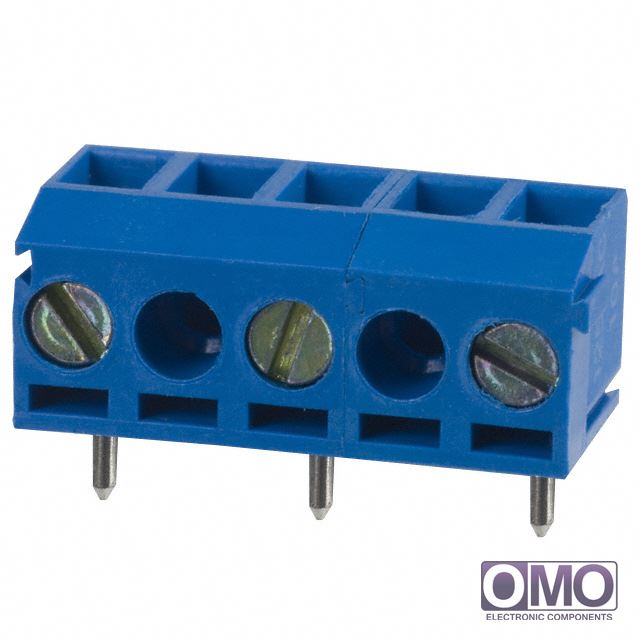

- TERM BLOCK 7MM HORIZONT 3POS PCB
- Category
- Connectors, Interconnects
- Family
- Terminal Blocks - Wire to Board
- To learn about the specification of OSTTF031161, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add OSTTF031161 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of OSTTF031161.
- We are offering OSTTF031161 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of OSTTF031161
| Packaging | Bulk | |
| Number of Levels | 1 | |
| Positions Per Level | 3 | |
| Pitch | 0.276" (7.00mm) | |
| Mating Orientation | Vertical with Board | |
| Current | 10A | |
| Voltage | 125V | |
| Wire Gauge | 16-26 AWG | |
| Mounting Type | Through Hole | |
| Wire Termination | Screw | |
| Features | Interlocking (Side) | |
| Color | - | |
| Operating Temperature | -33°C ~ 120°C | |
| Housing Material | Polyamide (PA), Nylon | |
| Contact Material - Plating | Brass | |
| Clamp Material - Plating | Steel, Stainless | |
| Screw Material - Plating | Steel, Galvanized - Chromate Plated | |
| Torque - Screw | 0.2 Nm (1.7 Lb-In) | |
| Screw Thread | M2 | |
| Other Names | ED2652 EDC650/3DS | |
| call me | [email protected] | |
