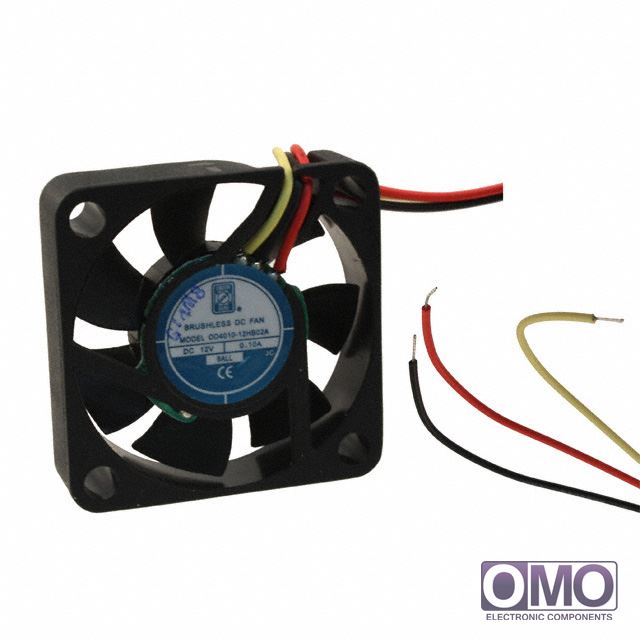

OD4010-12HB02A

To learn about the specification of OD4010-12HB02A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add OD4010-12HB02A with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of OD4010-12HB02A.
We are offering OD4010-12HB02A for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of OD4010-12HB02A

Voltage - Rated	12VDC
Size / Dimension	Square - 40mm L x 40mm H x 10.5mm W
Air Flow	7.0 CFM (0.198m³/min)
Static Pressure	0.100 in H2O (24.9 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Noise	25 dB
Power (Watts)	-
RPM	6000 RPM
Termination	3 Wire Leads
Ingress Protection	-
Weight	-
Operating Temperature	-4 ~ 176°F (-20 ~ 80°C)
Current Rating	0.090A
Voltage Range	7 ~ 14VDC
Life Expectancy	60000 hrs @ 45°C
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Other Names	1053-1411 OD401012HB02A
