Part Number

OD1238-24HB02A

Manufacturer

Description

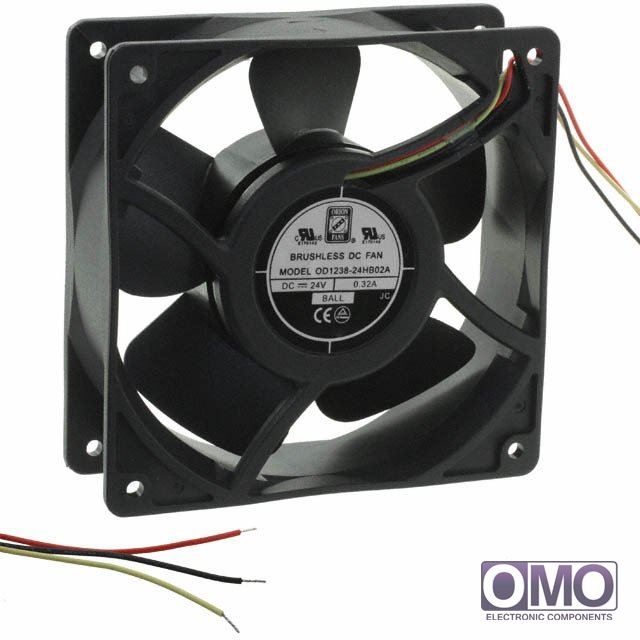

FAN AXIAL 120X38.5MM 24VDC WIRE
Category
Fans, Thermal Management
Family
DC Fans

  • To learn about the specification of OD1238-24HB02A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add OD1238-24HB02A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of OD1238-24HB02A.
  • We are offering OD1238-24HB02A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of OD1238-24HB02A
Voltage - Rated24VDC
Size / DimensionSquare - 120mm L x 120mm H x 38.5mm W
Air Flow105.0 CFM (2.97m³/min)
Static Pressure0.240 in H2O (59.8 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesLocked Rotor Sensor
Noise43 dB
Power (Watts)7.00W
RPM2800 RPM
Termination3 Wire Leads
Ingress Protection-
Weight-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Current Rating0.320A
Voltage Range-
Life Expectancy65000 hrs @ 45°C
Material - FramePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - BladePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Other Names1053-1424
OD123824HB02A
OD1238PT-24HB02A
