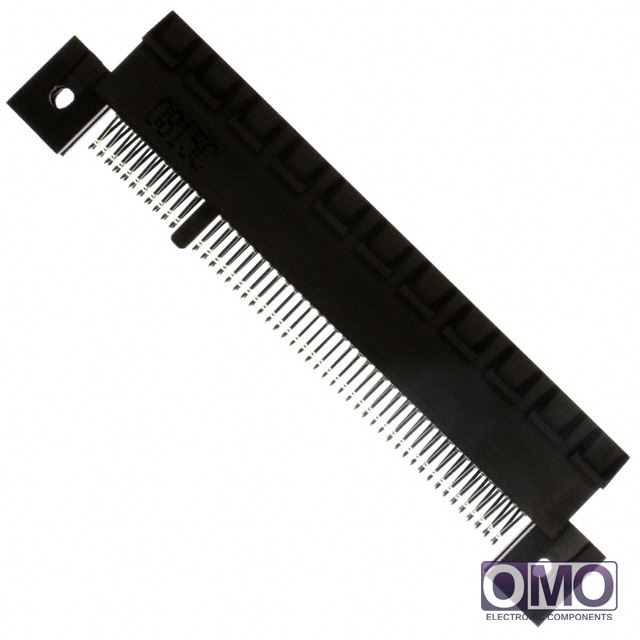

NWE49DHRQ-T941

View larger image

Part Number

NWE49DHRQ-T941

Manufacturer

Description
CONN PCI EXPRESS 98POS VERT PCB
Category
Connectors, Interconnects
Family
Card Edge Connectors - Edgeboard Connectors
  • To learn about the specification of NWE49DHRQ-T941, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add NWE49DHRQ-T941 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of NWE49DHRQ-T941.
  • We are offering NWE49DHRQ-T941 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of NWE49DHRQ-T941
PackagingTray
Card TypePCI Express™
GenderFemale
Number of Positions/Bay/Row38; 11
Number of Positions98
Card Thickness0.062" (1.57mm)
Number of Rows2
Pitch0.039" (1.00mm)
FeaturesBoard Guide, Card Extender, Clips, Locking Ramp
Mounting TypeBoard Edge, Straddle Mount
TerminationSolder
Contact MaterialPhosphor Bronze
Contact FinishGold
Contact Finish ThicknessFlash
Contact TypeCantilever
ColorBlack
Flange FeatureStraddle Mount Opening, Unthreaded, 0.078" (1.98mm)
Operating Temperature-55°C ~ 105°C
Material - InsulationPolyamide (PA), Nylon 4/6
Read OutDual
Other NamesS2809
