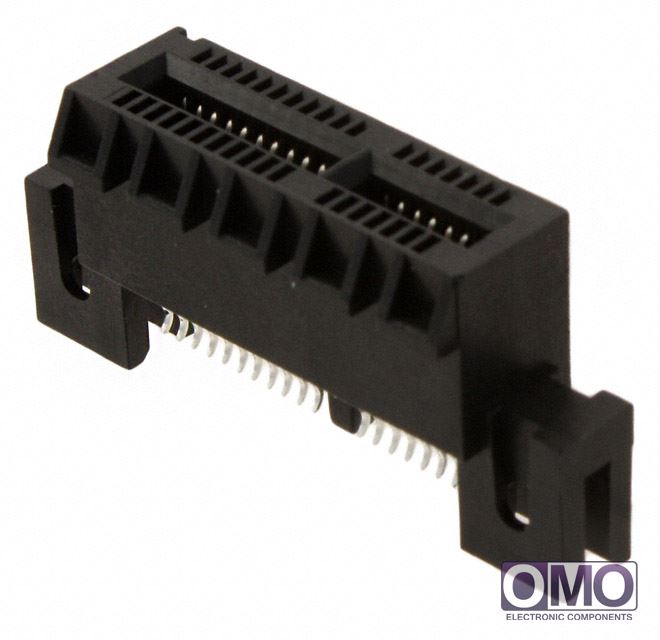

NWE18DHRQ-T941

View larger image

Part Number

NWE18DHRQ-T941

Manufacturer

Description
CONN PCI EXPRESS 36POS VERT PCB
Category
Connectors, Interconnects
Family
Card Edge Connectors - Edgeboard Connectors
  • To learn about the specification of NWE18DHRQ-T941, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add NWE18DHRQ-T941 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of NWE18DHRQ-T941.
  • We are offering NWE18DHRQ-T941 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of NWE18DHRQ-T941
PackagingTray
Card TypePCI Express™
GenderFemale
Number of Positions/Bay/Row18
Number of Positions36
Card Thickness0.062" (1.57mm)
Number of Rows2
Pitch0.039" (1.00mm)
FeaturesBoard Guide, Card Extender, Clips, Locking Ramp
Mounting TypeBoard Edge, Straddle Mount
TerminationSolder
Contact MaterialPhosphor Bronze
Contact FinishGold
Contact Finish ThicknessFlash
Contact TypeCantilever
ColorBlack
Flange FeatureStraddle Mount Opening, Unthreaded, 0.078" (1.98mm)
Operating Temperature-55°C ~ 105°C
Material - InsulationPolyamide (PA), Nylon 4/6
Read OutDual
Other NamesNWE18DHRQT941
