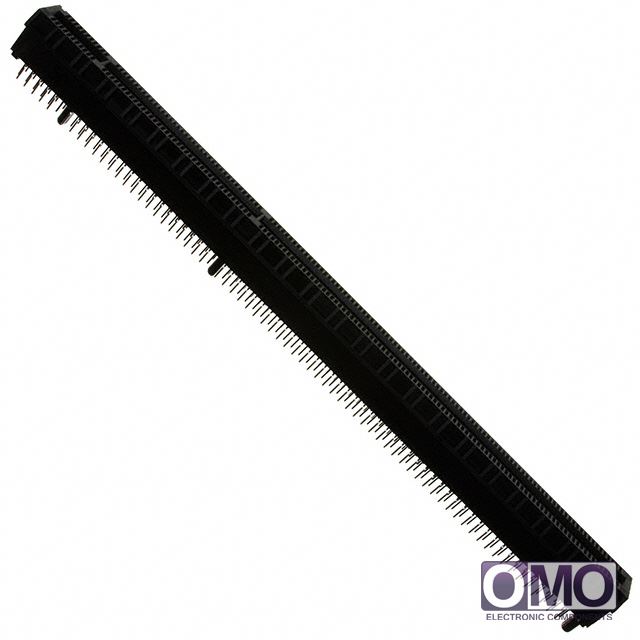

NWE140DHHN-T921

View larger image

Part Number

NWE140DHHN-T921

Manufacturer

Description
CONN PCI EXPRESS 280POS VERT PCB
Category
Connectors, Interconnects
Family
Card Edge Connectors - Edgeboard Connectors
  • To learn about the specification of NWE140DHHN-T921, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add NWE140DHHN-T921 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of NWE140DHHN-T921.
  • We are offering NWE140DHHN-T921 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of NWE140DHHN-T921
PackagingTray
Card TypePCI Express™
GenderFemale
Number of Positions/Bay/Row11; 38; 91
Number of Positions280
Card Thickness0.062" (1.57mm)
Number of Rows2
Pitch0.039" (1.00mm)
FeaturesBoard Guide, Locking Ramp
Mounting TypeThrough Hole
TerminationSolder, Staggered
Contact MaterialPhosphor Bronze
Contact FinishGold
Contact Finish ThicknessFlash
Contact TypeCantilever
ColorBlack
Flange Feature-
Operating Temperature-55°C ~ 85°C
Material - InsulationPolyamide (PA), Nylon 4/6
Read OutDual
Other NamesS2797
