- Part Number
NTS505
- Manufacturer
Artesyn Embedded Technologies
- Description

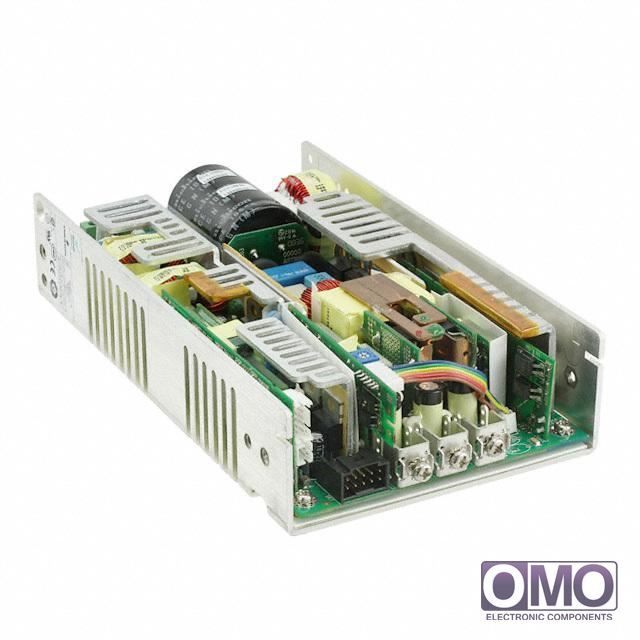

- AC/DC CONVERTER 24V 200W
- Category
- Power Supplies - External/Internal (Off-Board)
- Family
- AC DC Converters
- To learn about the specification of NTS505, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add NTS505 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of NTS505.
- We are offering NTS505 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of NTS505
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 8.3A | |
| Power (Watts) | 200W (500W Forced Air) | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | - | |
| Efficiency | 85% | |
| Operating Temperature | 0°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, I²C™ Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 9.15" L x 4.00" W x 1.61" H (232.3mm x 101.6mm x 40.9mm) | |
| Minimum Load Required | No | |
| Approvals | CB, CE | |
| Power (Watts) - Max | 200W (500W Forced Air) | |
| call me | [email protected] | |
