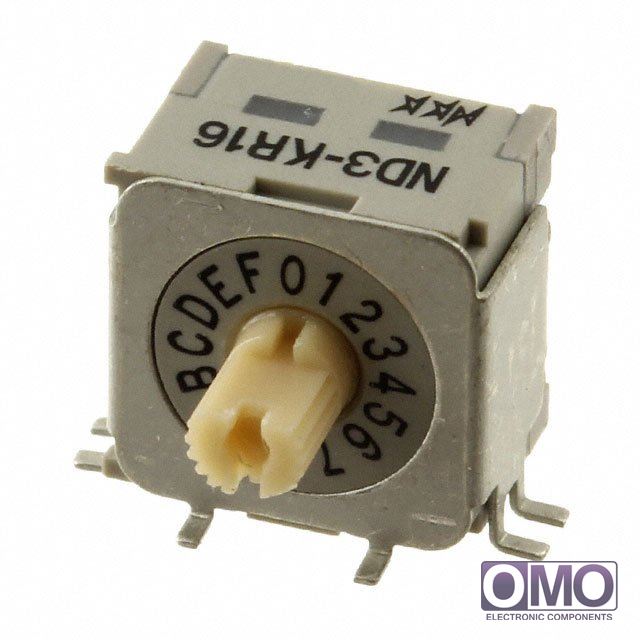

ND3KR16H

To learn about the specification of ND3KR16H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ND3KR16H with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of ND3KR16H.
We are offering ND3KR16H for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of ND3KR16H

Packaging	Tray
Circuit	Hexadecimal
Number of Positions	16
Current Rating	100mA
Voltage Rating	5VDC
Actuator Type	Rotary with Shaft
Actuator Level	Raised
Contact Material	Beryllium Copper
Contact Finish	Gold
Height Above Board	0.316" (8.03mm)
Mounting Type	Surface Mount, Right Angle
Termination Style	Gull Wing
Pitch	0.050" (1.27mm), Half
Washable	Yes
Features	Epoxy Sealed Terminals
Body Material	Polyamide (PA), Nylon, Glass Filled
Length	0.320" (8.13mm)
Operating Temperature	-25°C ~ 85°C
Mechanical Life	20,000 Steps
Electrical Life	20,000 Steps
Other Names	360-3158 ND3KR16H-ND
