- Part Number

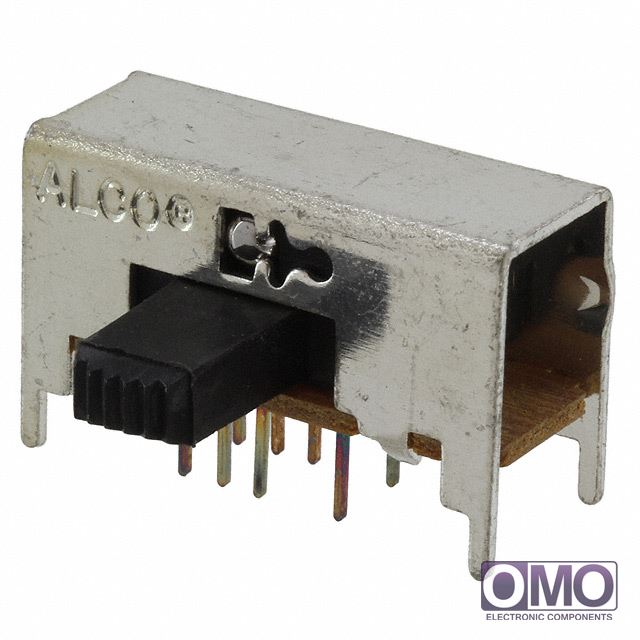

MSSA2350R
- Manufacturer
TE Connectivity Alcoswitch Switches
- Description
- SWITCH SLIDE DP3T 300MA 125V
- Category
- Switches
- Family
- Slide Switches
- To learn about the specification of MSSA2350R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add MSSA2350R with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of MSSA2350R.
- We are offering MSSA2350R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of MSSA2350R
| Packaging | Bulk | |
| Circuit | DP3T | |
| Contact Timing | Shorting (MBB) | |
| Switch Function | On-On-On | |
| Current Rating | 300mA (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Standard | |
| Actuator Length | 9.02mm | |
| Contact Material | Copper Alloy | |
| Contact Finish | Silver | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Polyester | |
| Switch Travel | 2.00mm | |
| Operating Temperature | -20°C ~ 85°C | |
| Mechanical Life | 15,000 Cycles | |
| Electrical Life | 15,000 Cycles | |
| Operating Force | 470gf | |
| Other Names | 450-1974 5-1437580-5 MSSA2350R-ND | |
