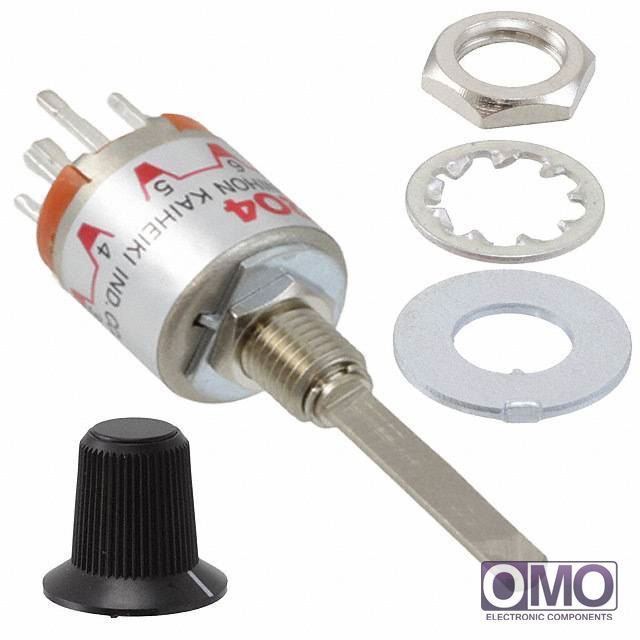

Part Number

MRX204-CA

Manufacturer

Description
MINIATURE ROTARY/LOGIC AND POWER
Category
Switches
Family
Rotary Switches

  • To learn about the specification of MRX204-CA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add MRX204-CA with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of MRX204-CA.
  • We are offering MRX204-CA for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of MRX204-CA
Number of Positions2 ~ 4
Index StopsAdjustable
Number of Decks1
Number of Poles per Deck2
Circuit per DeckDP4T
Contact TimingNon-Shorting (BBM)
Current Rating2A (AC), 1A (DC)
Voltage Rating - AC125V
Voltage Rating - DC30V
Actuator TypeKnob
Actuator Length15.80mm
Angle of Throw45°
Contact MaterialSilver Alloy
Contact Finish-
Mounting TypePanel Mount, Through Hole
Termination StylePC Pin
FeaturesSealed - Flux Protection
Depth Behind Panel27.30mm
Panel Cutout DimensionsCircular - 6.35mm Dia
Operating Force, Torque0.03 ~ 0.15 N-m
Other Names360-3156
MR-X204-CA
MRX204-CA-ND
