- Part Number

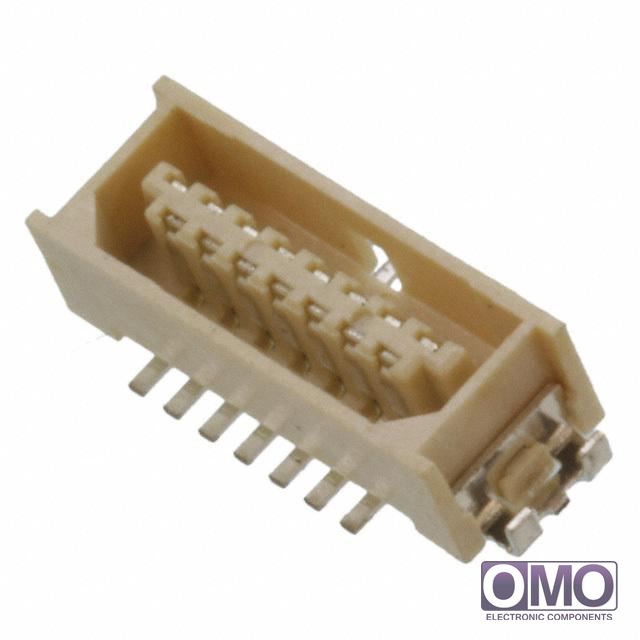

M40-6001546
- Manufacturer
Harwin Inc.
- Description
- CONN PLUG 15POS TIN 1MM SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of M40-6001546, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add M40-6001546 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of M40-6001546.
- We are offering M40-6001546 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of M40-6001546
| Packaging | Tube | |
| Connector Type | Plug, Center Strip Contacts | |
| Number of Positions | 15 | |
| Pitch | 0.039" (1.00mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 80µin (2.03µm) | |
| Mated Stacking Heights | 4.3mm | |
| Height Above Board | 0.130" (3.30mm) | |
| Other Names | 952-1857 M406001546 | |
| call me | [email protected] | |
