- Part Number

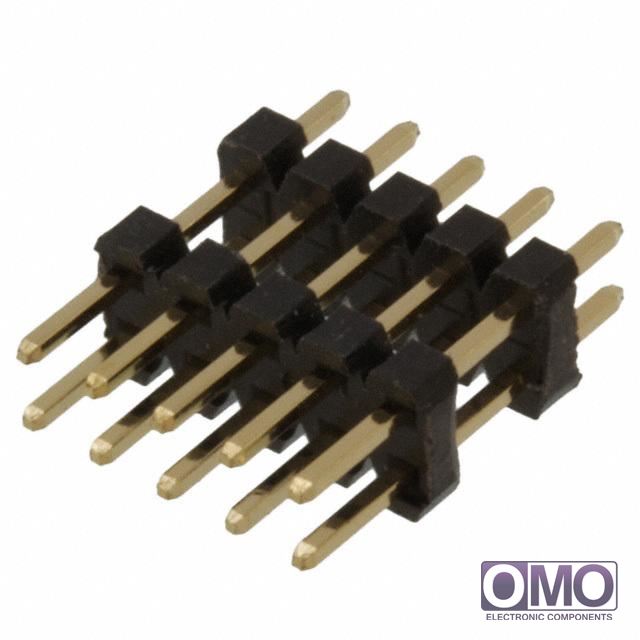

M22-2660505
- Manufacturer
Harwin Inc.
- Description
- 2 X 5POS DIL EXT P/HEADER (6MM)
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Board Spacers, Stackers
- To learn about the specification of M22-2660505, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add M22-2660505 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of M22-2660505.
- We are offering M22-2660505 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of M22-2660505
| Packaging | Bulk | |
| Number of Positions | 10 | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Length - Overall | 0.469" (11.90mm) | |
| Length - Post (Mating) | 0.138" (3.50mm) | |
| Length - Stack Height | 0.236" (6.00mm) | |
| Length - Tail | 0.095" (2.41mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Finish - Post (Mating) | Gold | |
| Contact Finish Thickness - Post (Mating) | - | |
| Color | Black | |
| Other Names | 952-1883 M222660505 | |
| call me | [email protected] | |
