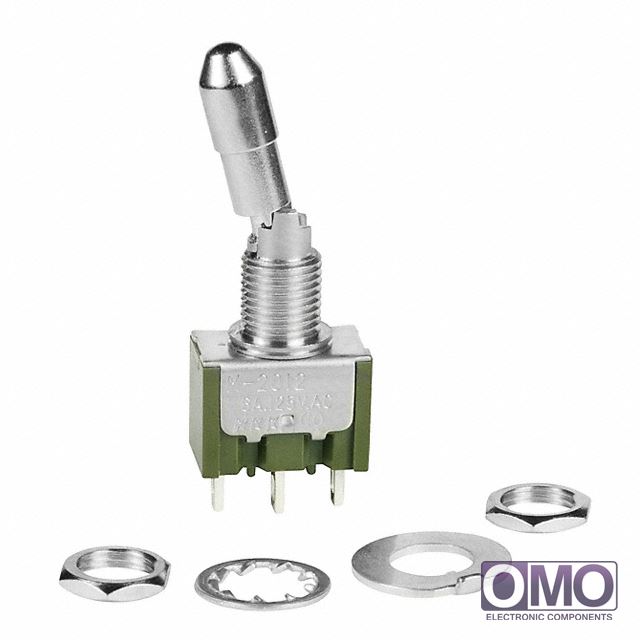

M2012LL1W01

To learn about the specification of M2012LL1W01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add M2012LL1W01 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of M2012LL1W01.
We are offering M2012LL1W01 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of M2012LL1W01

Packaging	Bulk
Circuit	SPDT
Switch Function	On-On
Current Rating	6A (AC), 4A (DC)
Voltage Rating - AC	125V
Voltage Rating - DC	30V
Actuator Type	Locking Lever
Actuator Length	16.50mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Mounting Type	Panel Mount
Termination Style	Solder Lug
Panel Cutout Dimensions	Circular - 6.50mm Dia
Bushing Thread	1/4-40
Ingress Protection	-
Features	Epoxy Sealed Terminals
Actuator Material	Brass, Chrome Plated
Electrical Life	25,000 Cycles
Operating Temperature	-30°C ~ 85°C
Other Names	360-1096 360-1096-ND 360-1787 M2012LL1W01-RO
