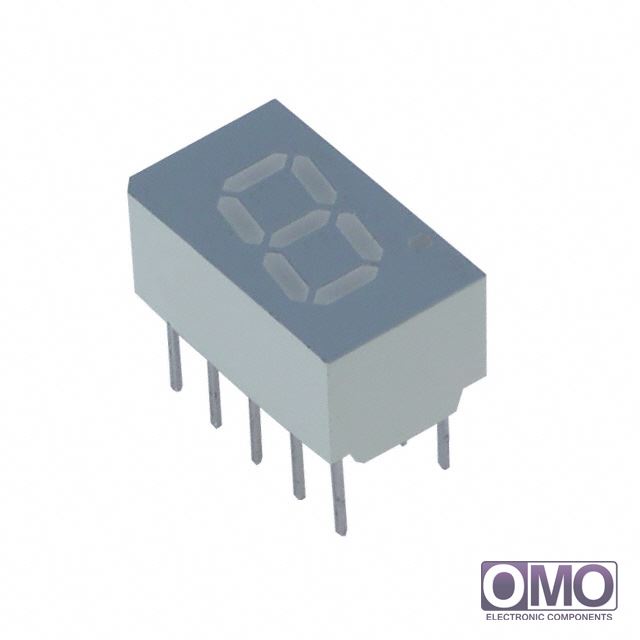

LSHD-7503

View larger image

Part Number

LSHD-7503

Manufacturer

Description
LED 7-SEG .3" RED 632NM CC
Category
Optoelectronics
Family
Display Modules - LED Character and Numeric
  • To learn about the specification of LSHD-7503, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add LSHD-7503 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of LSHD-7503.
  • We are offering LSHD-7503 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of LSHD-7503
Number of Characters1
Size / Dimension0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)
Digit/Alpha Size0.30" (7.62mm)
Display Type7-Segment
Common PinCommon Cathode
ColorRed
Voltage - Forward (Vf) (Typ)2.1V
Current - Test20mA
Millicandela Rating12mcd
Wavelength - Peak632nm
Power Dissipation (Max)70mW
Package / Case10-DIP (0.200", 5.08mm)
Other Names160-1570-5
LSHD7503
