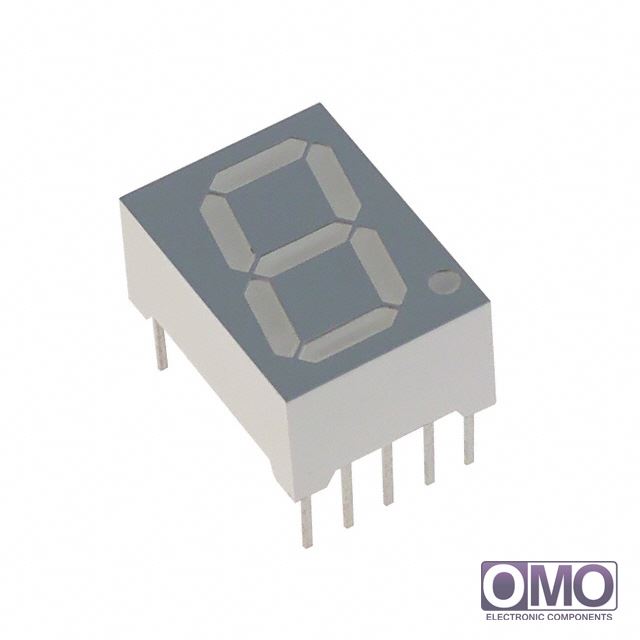

Part Number

LSHD-5503

Manufacturer

Description
LED 7-SEG .56" RED 632NM CC
Category
Optoelectronics
Family
Display Modules - LED Character and Numeric

  • To learn about the specification of LSHD-5503, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add LSHD-5503 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of LSHD-5503.
  • We are offering LSHD-5503 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of LSHD-5503
Number of Characters1
Size / Dimension0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm)
Digit/Alpha Size0.56" (14.22mm)
Display Type7-Segment
Common PinCommon Cathode
ColorRed
Voltage - Forward (Vf) (Typ)2.1V
Current - Test20mA
Millicandela Rating17mcd
Wavelength - Peak632nm
Power Dissipation (Max)70mW
Package / Case10-DIP (0.600", 15.24mm)
Other Names160-1576-5
LSHD5503
