LQH55DN220M03L

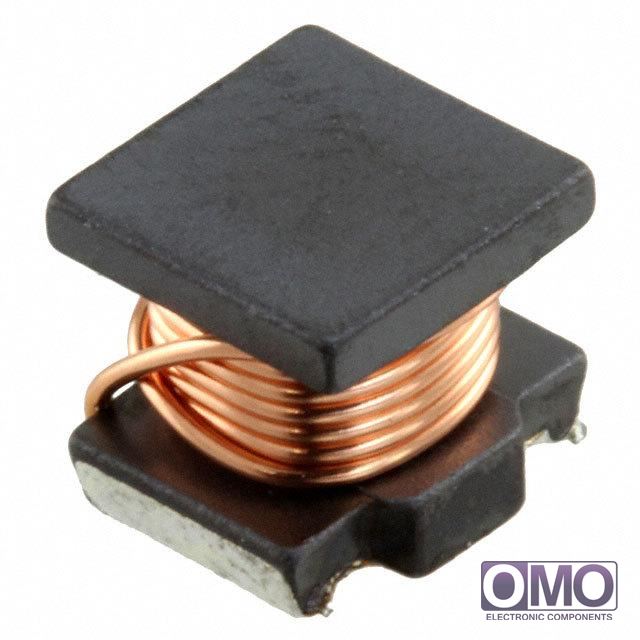

View larger image

Part Number

LQH55DN220M03L

Manufacturer

Description
FIXED IND 22UH 1.2A 190 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of LQH55DN220M03L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add LQH55DN220M03L with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of LQH55DN220M03L.
  • We are offering LQH55DN220M03L for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of LQH55DN220M03L
PackagingTape & Reel (TR)
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±20%
Current Rating1.2A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)266 mOhm Max
Q @ Freq-
Frequency - Self Resonant15MHz
Operating Temperature-40°C ~ 85°C
Frequency - Test1MHz
Mounting TypeSurface Mount
Package / Case2220 (5750 Metric)
Size / Dimension0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max)0.197" (5.00mm)
Supplier Device Package-
Other Names490-11692-2
LQH55DN220M03L-ND
Q4300888F
