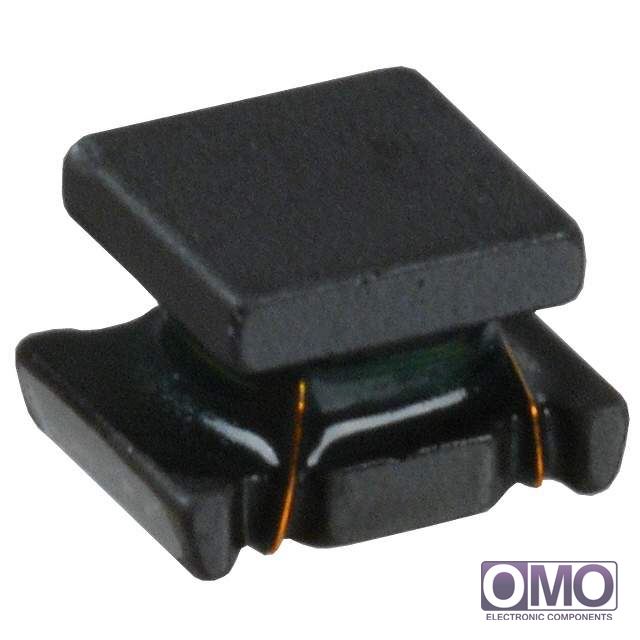

LQH32MN561J23L

View larger image

Part Number

LQH32MN561J23L

Manufacturer

Description
FIXED IND 560UH 40MA 28 OHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of LQH32MN561J23L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add LQH32MN561J23L with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of LQH32MN561J23L.
  • We are offering LQH32MN561J23L for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of LQH32MN561J23L
PackagingTape & Reel (TR)
TypeWirewound
Material - CoreFerrite
Inductance560µH
Tolerance±5%
Current Rating40mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)28 Ohm Max
Q @ Freq50 @ 796kHz
Frequency - Self Resonant5MHz
Operating Temperature-40°C ~ 85°C
Frequency - Test1kHz
Mounting TypeSurface Mount
Package / Case1210 (3225 Metric)
Size / Dimension0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)0.087" (2.20mm)
Supplier Device Package1210
Other Names490-2513-2
