- Part Number

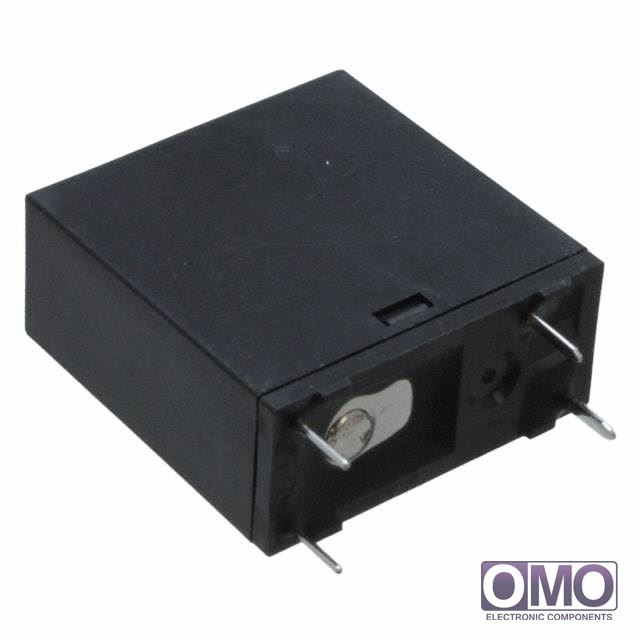

LKT1AF-5V
- Manufacturer
Panasonic Electric Works
- Description
- RELAY GEN PURPOSE SPST 5A 5V
- Category
- Relays
- Family
- Power Relays, Over 2 Amps
- To learn about the specification of LKT1AF-5V, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add LKT1AF-5V with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of LKT1AF-5V.
- We are offering LKT1AF-5V for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of LKT1AF-5V
| Packaging | Tray | |
| Relay Type | General Purpose | |
| Coil Type | Non Latching | |
| Coil Current | 50mA | |
| Coil Voltage | 5VDC | |
| Contact Form | SPST-NO (1 Form A) | |
| Contact Rating (Current) | 5A | |
| Switching Voltage | 277VAC - Max | |
| Turn On Voltage (Max) | 3.5 VDC | |
| Turn Off Voltage (Min) | 0.5 VDC | |
| Operate Time | 15ms | |
| Release Time | 5ms | |
| Features | Sealed - Flux Protection | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Contact Material | Silver Tin Oxide (AgSnO) | |
| Coil Power | 250 mW | |
| Coil Resistance | 100 Ohms | |
| Operating Temperature | -40°C ~ 70°C | |
| Other Names | 255-3499 LKT1AF5V | |
