- Part Number

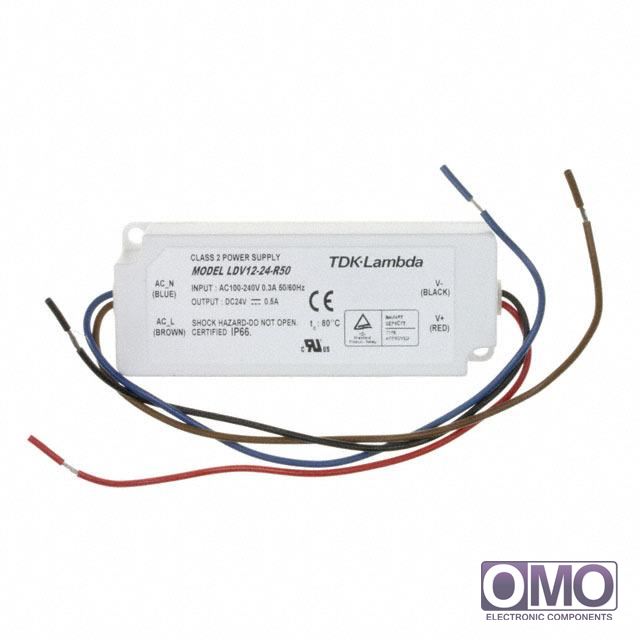

LDV12-24-R50
- Manufacturer
TDK-Lambda Americas, Inc.
- Description
- LED SUPPLY CV AC/DC 24V 500MA
- Category
- Power Supplies - External/Internal (Off-Board)
- Family
- LED Supplies
- To learn about the specification of LDV12-24-R50, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add LDV12-24-R50 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of LDV12-24-R50.
- We are offering LDV12-24-R50 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of LDV12-24-R50
| Type | Constant Voltage | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 90VAC | |
| Voltage - Input (Max) | 264VAC | |
| Voltage - Output | 24V | |
| Current - Output (Max) | 500mA | |
| Power (Watts) | 12W | |
| Voltage - Isolation | 3kV (3000V) | |
| Dimming | - | |
| Features | OCP, OVP | |
| Ratings | IP66 | |
| Operating Temperature | -10°C ~ 60°C | |
| Efficiency | 82% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 3.45" L x 1.36" W x 0.83" H (90.0mm x 34.5mm x 21.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | CE, IEC, UL | |
| Weight | 0.186 lb (84.37g) | |
| Other Names | 285-1930 LDV1224R50 | |
