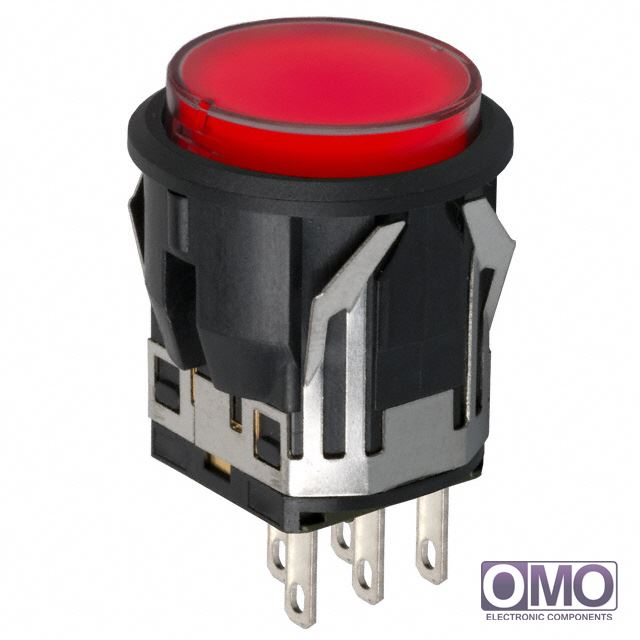

LB15CKW01-5C-JC

View larger image

Part Number

LB15CKW01-5C-JC

Manufacturer

Description
SWITCH PUSHBUTTON SPDT 3A 125V
Category
Switches
Family
Pushbutton Switches
  • To learn about the specification of LB15CKW01-5C-JC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add LB15CKW01-5C-JC with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of LB15CKW01-5C-JC.
  • We are offering LB15CKW01-5C-JC for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of LB15CKW01-5C-JC
PackagingBulk
TypeStandard, Illuminated
CircuitSPDT
Switch FunctionOn-Mom
Current Rating3A (AC/DC)
Voltage Rating - AC125V
Voltage Rating - DC30V
Actuator TypeRound, Button
Color - Actuator/CapClear (Red Filter/Diffuser)
Illumination Type, ColorLED, Red
Illumination Voltage (Nominal)1.9 VDC
Mounting TypePanel Mount, Snap-In
Termination StyleSolder, Quick Connect - 0.110" (2.8mm)
Ingress Protection-
Features-
Panel Cutout DimensionsCircular - 22.00mm Dia
Operating Temperature-25°C ~ 50°C
Mechanical Life1,000,000 Cycles
Electrical Life100,000 Cycles
Other Names360-1655
360-1655-ND
360-2020
LB15CKW01-5C-JC-RO
LB15CKW015CJC
