- Part Number

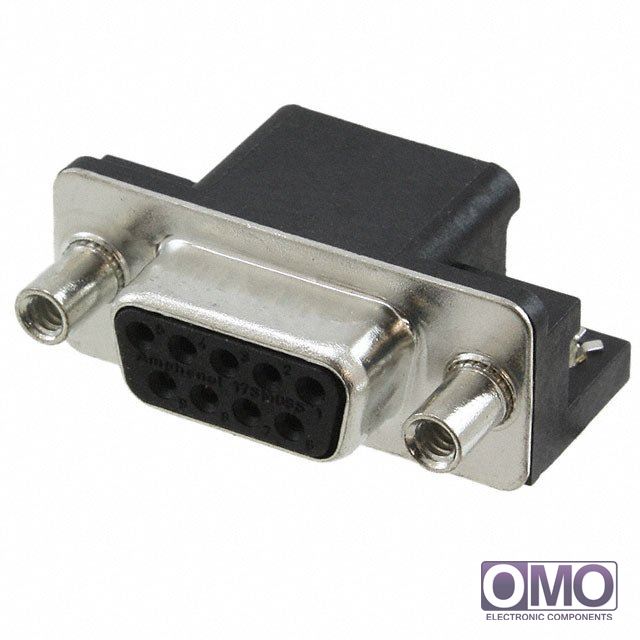

L17SM209SB64T
- Manufacturer
Amphenol Commercial Products
- Description
- D-Sub Connector Receptacle, Female Sockets 9 Position Surface Mount, Right Angle Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of L17SM209SB64T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add L17SM209SB64T with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of L17SM209SB64T.
- We are offering L17SM209SB64T for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tray | |
| Connector Style | D-Sub | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 9 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Contact Type | Signal | |
| Mounting Type | Surface Mount, Right Angle | |
| Flange Feature | Mating Side (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 31.5µin (0.80µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 155°C | |
| Voltage Rating | 300V | |
| Current Rating | 3A | |
| Housing Material | Thermoplastic, Glass Filled | |
| Color | Black | |
