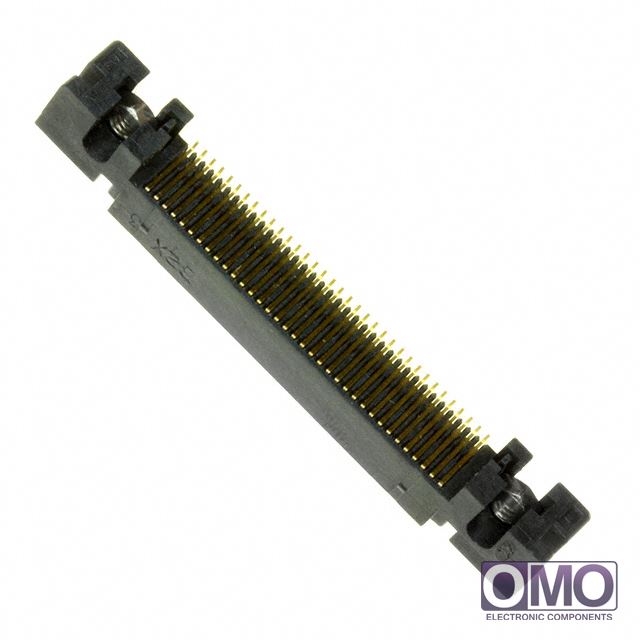

- Part Number
KX15-70KLNL
- Manufacturer
JAE Electronics
- Description
- CONN PLUG 0.8MM 70POS R/A SMD AU
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of KX15-70KLNL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add KX15-70KLNL with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of KX15-70KLNL.
- We are offering KX15-70KLNL for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of KX15-70KLNL
| Packaging | Tray | |
| Connector Type | Plug, Center Strip Contacts | |
| Number of Positions | 70 | |
| Pitch | 0.031" (0.80mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount, Right Angle | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | - | |
| Height Above Board | 0.226" (5.74mm) | |
| Other Names | 670-1340 | |
| call me | [email protected] | |
