KX15-70K3DE

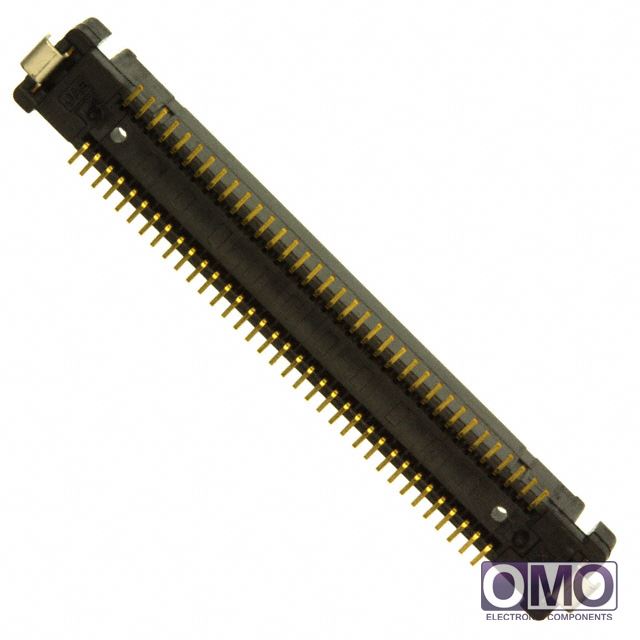

View larger image

Part Number

KX15-70K3DE

Manufacturer

Description
CONN PLUG 0.8MM 70POS SMD GOLD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of KX15-70K3DE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add KX15-70K3DE with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of KX15-70K3DE.
  • We are offering KX15-70K3DE for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of KX15-70K3DE
PackagingTray
Connector TypePlug, Center Strip Contacts
Number of Positions70
Pitch0.031" (0.80mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide, Solder Retention
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights5mm, 8mm, 11mm, 14mm, 17mm
Height Above Board0.187" (4.75mm)
Other Names670-1337
KX1570K3DE
