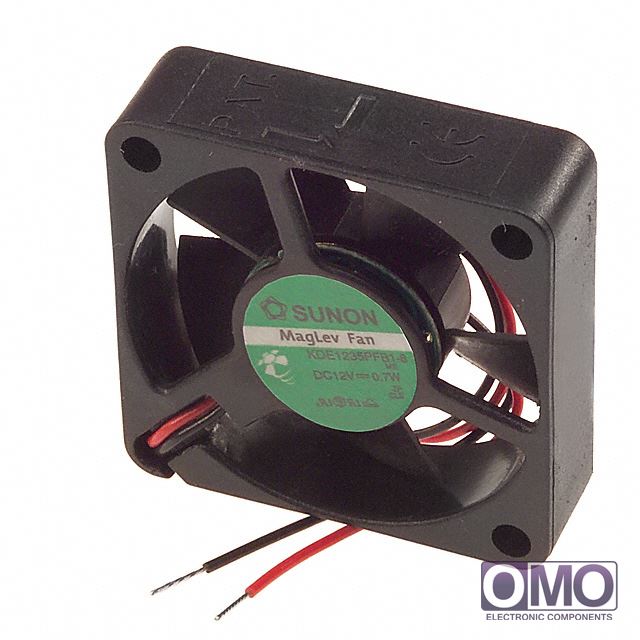

KDE1235PFB1-8 ( MS )

To learn about the specification of KDE1235PFB1-8 ( MS ), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add KDE1235PFB1-8 ( MS ) with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of KDE1235PFB1-8 ( MS ).
We are offering KDE1235PFB1-8 ( MS ) for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of KDE1235PFB1-8 ( MS )

Voltage - Rated	12VDC
Size / Dimension	Square - 35mm L x 35mm H x 10mm W
Air Flow	6.5 CFM (0.184m³/min)
Static Pressure	0.120 in H2O (29.9 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	-
Noise	25.5 dB(A)
Power (Watts)	1.00W
RPM	7500 RPM
Termination	2 Wire Leads
Ingress Protection	-
Weight	0.02 lb (9.07g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.080A
Voltage Range	5 ~ 13.8VDC
Life Expectancy	-
Material - Frame	Polybutylene Terephthalate (PBT)
Material - Blade	Polybutylene Terephthalate (PBT)
Other Names	259-1183 E1235PFA18---RZ KDE1235PFB1-8(MS) KDE1235PFB18MS
