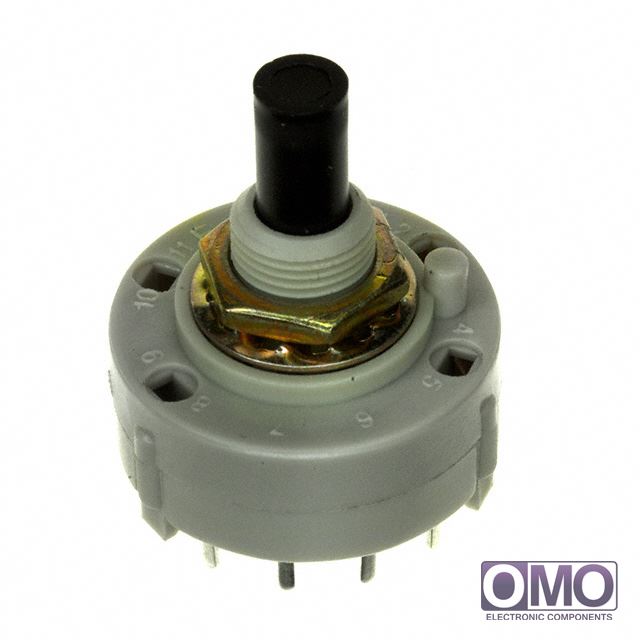

KC52B10.001NPS

To learn about the specification of KC52B10.001NPS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add KC52B10.001NPS with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of KC52B10.001NPS.
We are offering KC52B10.001NPS for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of KC52B10.001NPS

Number of Positions	12
Index Stops	Fixed
Number of Decks	1
Number of Poles per Deck	1
Circuit per Deck	SP12T
Contact Timing	Non-Shorting (BBM)
Current Rating	350mA (AC)
Voltage Rating - AC	125V
Voltage Rating - DC	-
Actuator Type	Round (6mm Dia)
Actuator Length	10.00mm
Angle of Throw	30°
Contact Material	Copper Alloy
Contact Finish	Silver
Mounting Type	Panel Mount, Through Hole
Termination Style	PC Pin
Features	-
Depth Behind Panel	14.20mm
Panel Cutout Dimensions	Circular - 9.80mm Dia
Operating Force, Torque	800 g-cm
Other Names	EG5138 KC-52-B-10.001NPS KC-52-B-10.001NPS-ND KC52B10.001NPS-ND Q1615381
