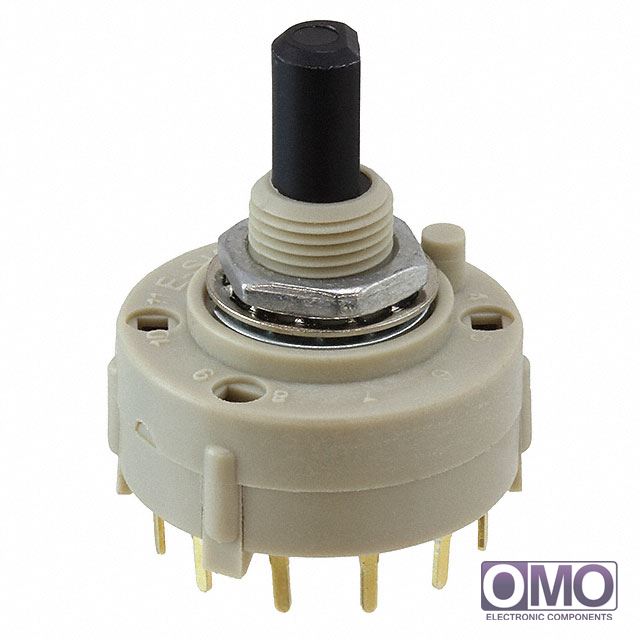

KC52A10.001NPF

View larger image

Part Number

KC52A10.001NPF

Manufacturer

Description
SW ROTARY SP-12POS PC MNT 125V
Category
Switches
Family
Rotary Switches
  • To learn about the specification of KC52A10.001NPF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add KC52A10.001NPF with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of KC52A10.001NPF.
  • We are offering KC52A10.001NPF for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of KC52A10.001NPF
Number of Positions12
Index StopsFixed
Number of Decks1
Number of Poles per Deck1
Circuit per DeckSP12T
Contact TimingNon-Shorting (BBM)
Current Rating350mA (AC)
Voltage Rating - AC125V
Voltage Rating - DC-
Actuator TypeFlatted (6.35mm Dia)
Actuator Length10.00mm
Angle of Throw30°
Contact MaterialCopper Alloy
Contact FinishGold
Mounting TypePanel Mount, Through Hole
Termination StylePC Pin
Features-
Depth Behind Panel14.20mm
Panel Cutout DimensionsCircular - 9.80mm Dia
Operating Force, Torque800 g-cm
Other NamesKC52E01.001NPF
KC52E01NPF
Q1036163
XG0002P
