- Part Number

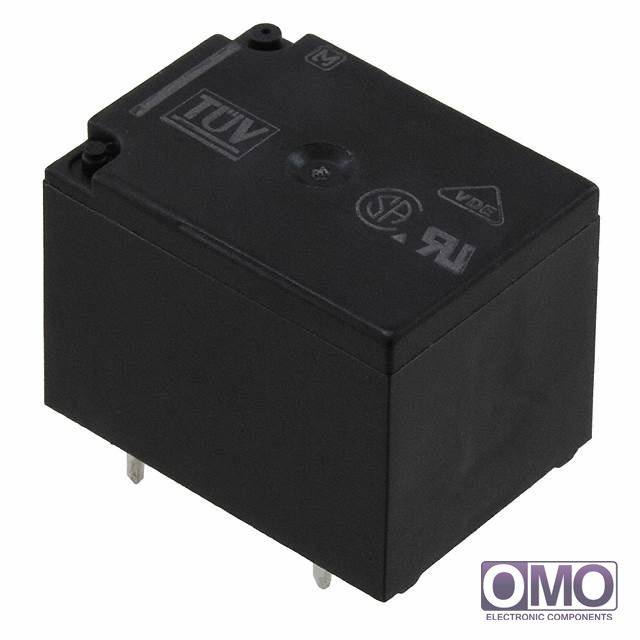

JS1F-24V-F
- Manufacturer
Panasonic Electric Works
- Description
- RELAY GEN PURPOSE SPDT 10A 24V
- Category
- Relays
- Family
- Power Relays, Over 2 Amps
- To learn about the specification of JS1F-24V-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add JS1F-24V-F with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of JS1F-24V-F.
- We are offering JS1F-24V-F for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of JS1F-24V-F
| Packaging | Bulk | |
| Relay Type | General Purpose | |
| Coil Type | Non Latching | |
| Coil Current | 15mA | |
| Coil Voltage | 24VDC | |
| Contact Form | SPDT (1 Form C) | |
| Contact Rating (Current) | 10A | |
| Switching Voltage | 250VAC, 100VDC - Max | |
| Turn On Voltage (Max) | 16.8 VDC | |
| Turn Off Voltage (Min) | 2.4 VDC | |
| Operate Time | 10ms | |
| Release Time | 10ms | |
| Features | Sealed - Flux Protection | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Contact Material | Silver Tin Oxide (AgSnO) | |
| Coil Power | 360 mW | |
| Coil Resistance | 1.6 kOhms | |
| Operating Temperature | -40°C ~ 70°C | |
| Other Names | 255-3622 JS1F24VF | |
