- Part Number

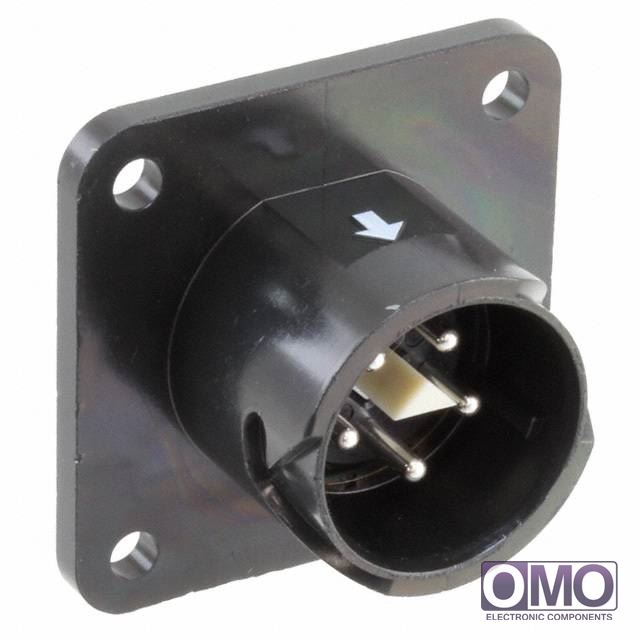

JN2AW05MH1
- Manufacturer
JAE Electronics
- Description
- CONN RCPT CIR 5POS W/PIN
- Category
- Connectors, Interconnects
- Family
- Circular Connectors
- To learn about the specification of JN2AW05MH1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add JN2AW05MH1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of JN2AW05MH1.
- We are offering JN2AW05MH1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of JN2AW05MH1
| Packaging | Bulk | |
| Connector Type | Receptacle, Male Pins | |
| Number of Positions | 5 (4 + PE) | |
| Shell Size - Insert | W | |
| Shell Size, MIL | - | |
| Mounting Type | Panel Mount, Flange | |
| Termination | Solder Cup | |
| Fastening Type | Push-Twist | |
| Orientation | N (Normal) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Shell Material, Finish | Zinc Alloy, Zinc Plated, Black | |
| Contact Finish | Silver | |
| Features | - | |
| Contact Finish Thickness | - | |
| Current Rating | 13A | |
| Voltage - Rated | 400VAC | |
| Operating Temperature | -20°C ~ 100°C | |
| Other Names | 670-2592 JN2AW05MH1-ND | |
| call me | [email protected] | |
