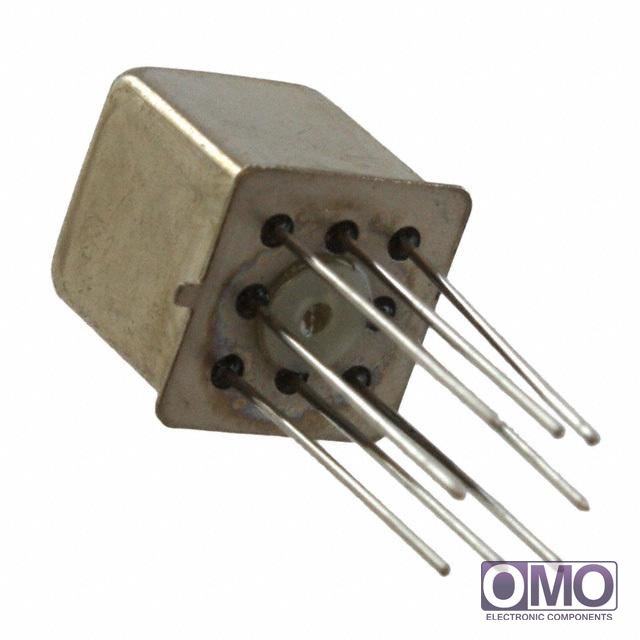

JMGSCD-26MW

View larger image

Part Number

JMGSCD-26MW

Manufacturer

Description
RELAY GEN PURPOSE DPDT 1A 26.5V
Category
Relays
Family
Signal Relays, Up to 2 Amps
  • To learn about the specification of JMGSCD-26MW, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add JMGSCD-26MW with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of JMGSCD-26MW.
  • We are offering JMGSCD-26MW for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of JMGSCD-26MW
PackagingBulk
Relay TypeGeneral Purpose
Coil TypeNon Latching
Coil Current8.3mA
Coil Voltage26.5VDC
Contact FormDPDT (2 Form C)
Contact Rating (Current)1A
Switching Voltage28VDC - Nom
Turn On Voltage (Max)14 VDC
Turn Off Voltage (Min)1.4 VDC
Operate Time4ms
Release Time7.5ms
FeaturesSealed - Hermetically
Mounting TypeThrough Hole
Termination StylePC Pin
Contact Material-
Coil Power219 mW
Coil Resistance3.2 kOhms
Operating Temperature-65°C ~ 125°C
Other Names1-1617150-0
1122-1081
A101639
A101639-ND
JMGSCD26MW
M39016/42-052M
