- Part Number

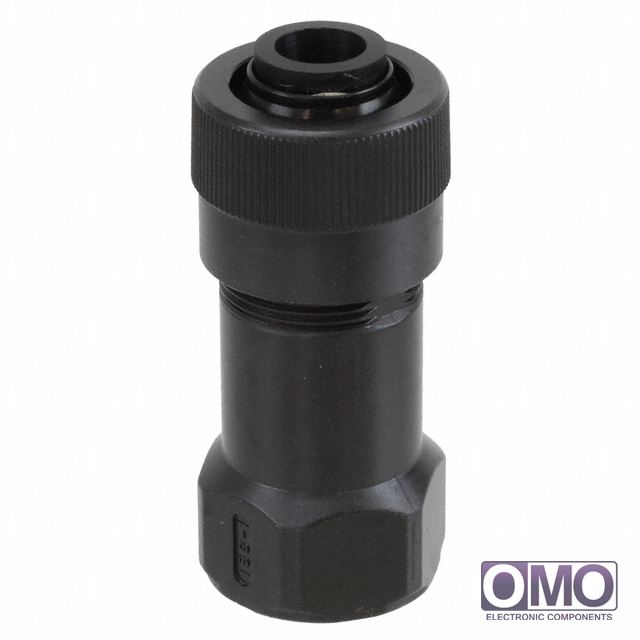

JL05-18EB3B-(11)-R
- Manufacturer
JAE Electronics
- Description
- CONN BACKSHELL W/CLAMP SZ18 1-20
- Category
- Connectors, Interconnects
- Family
- Circular Connectors - Backshells and Cable Clamps
- To learn about the specification of JL05-18EB3B-(11)-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add JL05-18EB3B-(11)-R with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of JL05-18EB3B-(11)-R.
- We are offering JL05-18EB3B-(11)-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of JL05-18EB3B-(11)-R
| Type | Backshell, Cable Clamp | |
| Cable Opening | 0.433" (11.00mm) | |
| Diameter - Outside | 1.260" (32.00mm) | |
| Shell Size - Insert | 18 | |
| Thread Size | 1-20 UNEF | |
| Cable Exit | 180° | |
| Material | Aluminum Alloy | |
| Plating | Zinc | |
| Shielding | - | |
| Color | Black | |
| Features | Bushing, Sleeve | |
| Ingress Protection | Waterproof | |
| Includes | 8 pcs - 1 Backshell, 2 Bushings, 1 Compression Nut, 1 O-Ring, 2 Screws, 1 Sleeve | |
| Material Flammability Rating | - | |
| For Use With/Related Products | JL05 Series Connectors | |
| Other Names | 670-2074 JL0518EB3B11R | |
