- Part Number
JG0-0025
- Manufacturer
Pulse Electronics Corporation
- Description

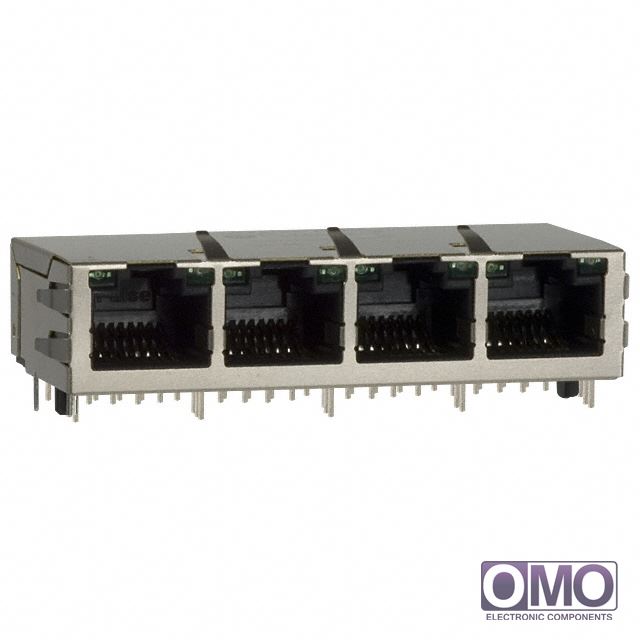

- CONN MAGJACK 4PORT 1000 BASE-T
- Category
- Connectors, Interconnects
- Family
- Modular Connectors - Jacks With Magnetics
- To learn about the specification of JG0-0025, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add JG0-0025 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of JG0-0025.
- We are offering JG0-0025 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of JG0-0025
| Packaging | Bulk | |
| Connector Type | RJ45 | |
| Number of Ports | 4 | |
| Number of Rows | 1 | |
| Applications | 10/100/1000 Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.545" (13.84mm) | |
| LED Color | Green - Green | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Guide | |
| Tab Direction | Up | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Shield Material | Brass | |
| Housing Material | Thermoplastic | |
| Operating Temperature | 0°C ~ 70°C | |
| Other Names | 553-1260 JG00025 | |
| call me | [email protected] | |
