J1MAWD-26XM

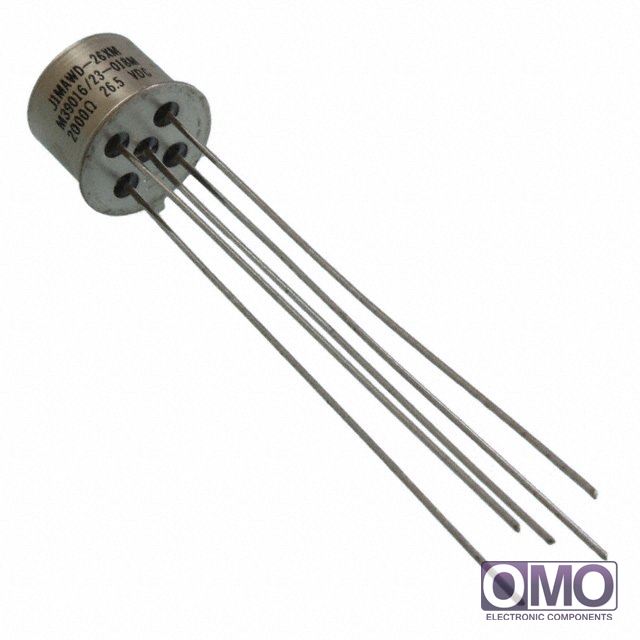

View larger image

Part Number

J1MAWD-26XM

Manufacturer

Description
RELAY GEN PURPOSE SPDT 1A 26.5V
Category
Relays
Family
Signal Relays, Up to 2 Amps
  • To learn about the specification of J1MAWD-26XM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add J1MAWD-26XM with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of J1MAWD-26XM.
  • We are offering J1MAWD-26XM for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of J1MAWD-26XM
PackagingBulk
Relay TypeGeneral Purpose
Coil TypeNon Latching
Coil Current13.3mA
Coil Voltage26.5VDC
Contact FormSPDT (1 Form C)
Contact Rating (Current)1A
Switching Voltage28VDC - Nom
Turn On Voltage (Max)14.2 VDC
Turn Off Voltage (Min)1.37 VDC
Operate Time2ms
Release Time4ms
FeaturesSealed - Hermetically
Mounting TypeThrough Hole
Termination StylePC Pin
Contact Material-
Coil Power351 mW
Coil Resistance2 kOhms
Operating Temperature-65°C ~ 125°C
Other Names1-1617119-6
1122-1008
A101612
A101612-ND
J1MAWD26XM
M39016/23-018M
