- Part Number

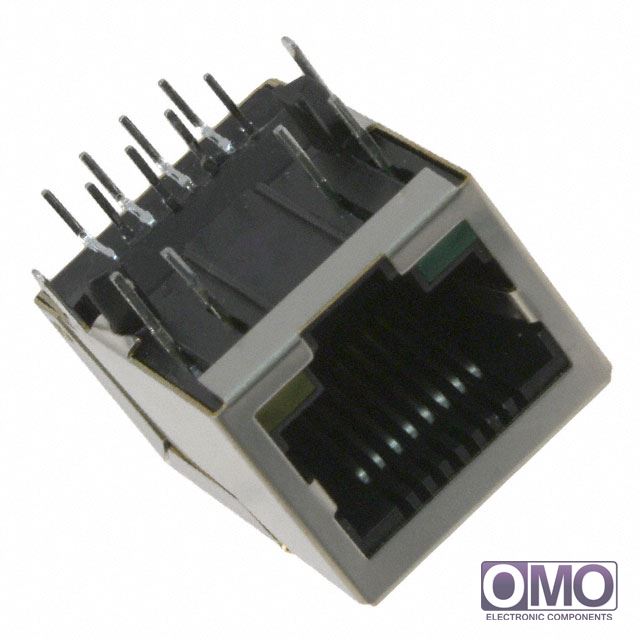

J00-0045NL
- Manufacturer
Pulse Electronics Corporation
- Description
- CONN MAGJACK 1PORT 100 BASE-TX
- Category
- Connectors, Interconnects
- Family
- Modular Connectors - Jacks With Magnetics
- To learn about the specification of J00-0045NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add J00-0045NL with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of J00-0045NL.
- We are offering J00-0045NL for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of J00-0045NL
| Packaging | Tube | |
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 10/100 Base-TX, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.545" (13.84mm) | |
| LED Color | Green - Yellow | |
| Number of Cores per Jack | 4 | |
| Shielding | Shielded | |
| Features | Board Guide | |
| Tab Direction | Down | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Shield Material | Brass | |
| Housing Material | Thermoplastic | |
| Operating Temperature | 0°C ~ 70°C | |
| Other Names | J00-0045NL-ND J000045NL | |
| call me | [email protected] | |
