- Part Number
IRGSL14C40LPBF
- Manufacturer
International Rectifier (Infineon Technologies Americas Corp.)
- Description
- IGBT 430V 20A 125W TO262AA
- Category
- Discrete Semiconductor Products
- Family
- IGBTs - Single
- To learn about the specification of IRGSL14C40LPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add IRGSL14C40LPBF with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of IRGSL14C40LPBF.
- We are offering IRGSL14C40LPBF for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of IRGSL14C40LPBF
| Packaging | Tube | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 430V | |
| Current - Collector (Ic) (Max) | 20A | |
| Current - Collector Pulsed (Icm) | - | |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 5V, 14A | |
| Power - Max | 125W | |
| Switching Energy | - | |
| Input Type | Logic | |
| Gate Charge | 27nC | |
| Td (on/off) @ 25°C | 900ns/6µs | |
| Test Condition | - | |
| Reverse Recovery Time (trr) | - | |

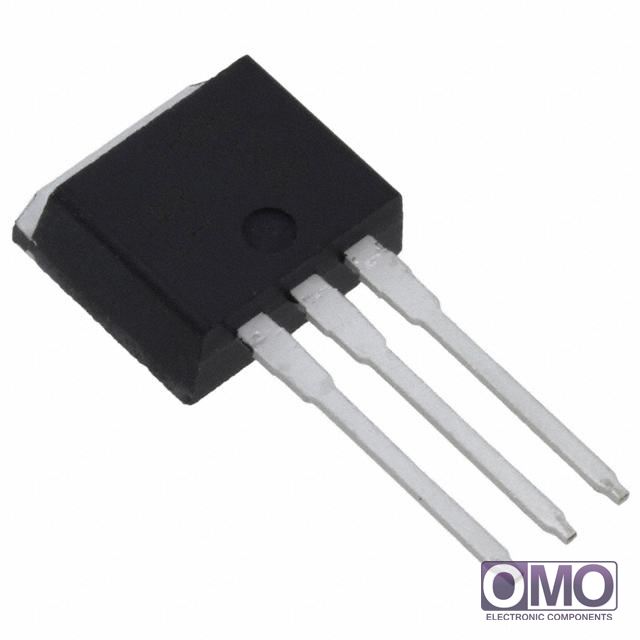

| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-262 | |
| Other Names | *IRGSL14C40LPBF | |
| call me | [email protected] | |
