IRG4BC15UD-LPBF

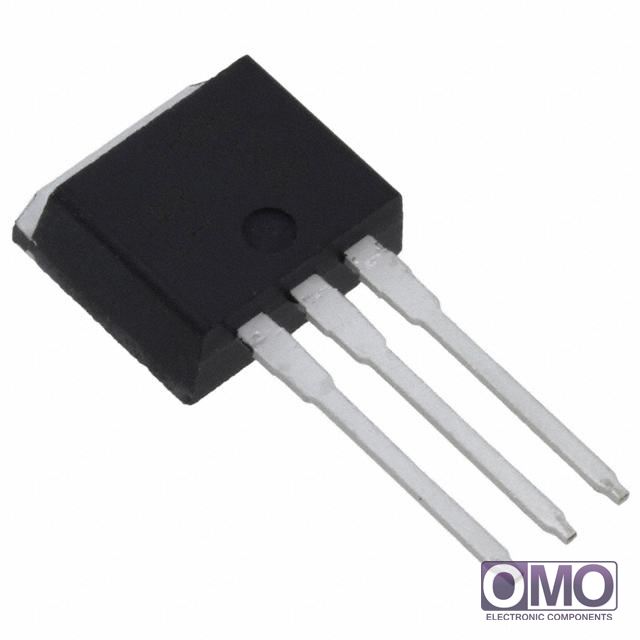

View larger image

Part Number

IRG4BC15UD-LPBF

Manufacturer

Description
IGBT 600V 14A 49W TO262
Category
Discrete Semiconductor Products
Family
IGBTs - Single
  • To learn about the specification of IRG4BC15UD-LPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add IRG4BC15UD-LPBF with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of IRG4BC15UD-LPBF.
  • We are offering IRG4BC15UD-LPBF for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of IRG4BC15UD-LPBF
PackagingTube
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600V
Current - Collector (Ic) (Max)14A
Current - Collector Pulsed (Icm)42A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 7.8A
Power - Max49W
Switching Energy240µJ (on), 260µJ (off)
Input TypeStandard
Gate Charge23nC
Td (on/off) @ 25°C17ns/160ns
Test Condition480V, 7.8A, 75 Ohm, 15V
Reverse Recovery Time (trr)28ns
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Mounting TypeThrough Hole
Supplier Device PackageTO-262
Other Names*IRG4BC15UD-LPBF
