- Part Number

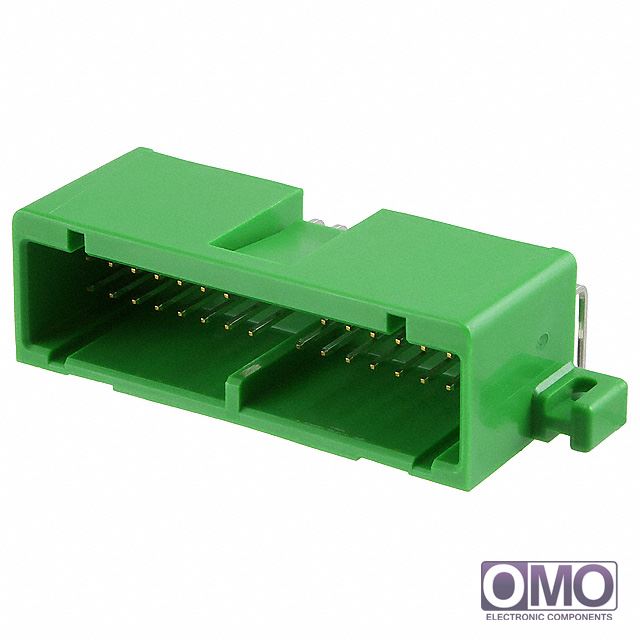

IL-AG7-30P-D3L2
- Manufacturer
JAE Electronics
- Description
- CONN PIN 30POS DUAL R/A T/H
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of IL-AG7-30P-D3L2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add IL-AG7-30P-D3L2 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of IL-AG7-30P-D3L2.
- We are offering IL-AG7-30P-D3L2 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of IL-AG7-30P-D3L2
| Packaging | Bulk | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 30 | |
| Number of Positions Loaded | All | |
| Pitch | 0.098" (2.50mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.118" (3.00mm) | |
| Contact Mating Length | 0.331" (8.40mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | Mounting Flange | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Green | |
| Other Names | 670-2131 ILAG730PD3L2 | |
| call me | [email protected] | |
