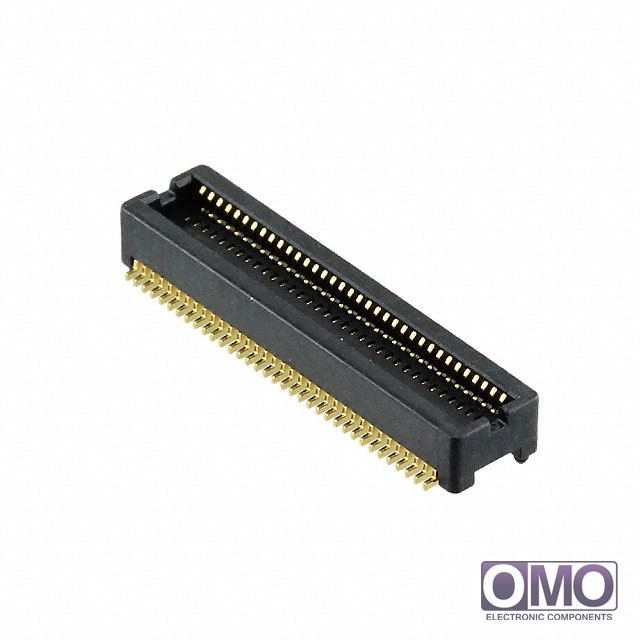

IL-312-A70SB-VFH05-A1

View larger image

Part Number

IL-312-A70SB-VFH05-A1

Manufacturer

Description
CONN RCPT 70POS 0.5MM SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of IL-312-A70SB-VFH05-A1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add IL-312-A70SB-VFH05-A1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of IL-312-A70SB-VFH05-A1.
  • We are offering IL-312-A70SB-VFH05-A1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of IL-312-A70SB-VFH05-A1
PackagingTray
Connector TypeReceptacle, Outer Shroud Contacts
Number of Positions70
Pitch0.020" (0.50mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide, Solder Retention
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights3mm, 3.5mm
Height Above Board0.104" (2.65mm)
Other Names670-1908
IL-312-A70SB-VFH05-A1-ND
IL312A70SBVFH05A1
