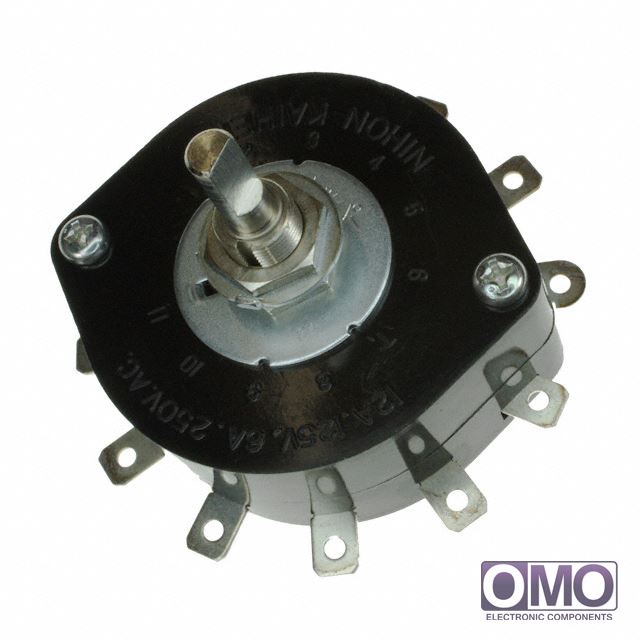

HS16-1SN

View larger image

Part Number

HS16-1SN

Manufacturer

Description
SW ROTARY SP 125V SHORTING 1DECK
Category
Switches
Family
Rotary Switches
  • To learn about the specification of HS16-1SN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HS16-1SN with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HS16-1SN.
  • We are offering HS16-1SN for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HS16-1SN
Number of Positions2 ~ 11
Index StopsAdjustable
Number of Decks1
Number of Poles per Deck1
Circuit per DeckSP11T
Contact TimingShorting (MBB)
Current Rating12A (AC)
Voltage Rating - AC125V
Voltage Rating - DC-
Actuator TypeFlatted (6mm Dia)
Actuator Length15.00mm
Angle of Throw30°
Contact MaterialPhosphor Bronze
Contact Finish-
Mounting TypePanel Mount
Termination StyleSolder Lug
Features-
Depth Behind Panel31.50mm
Panel Cutout DimensionsCircular - 10.30mm Dia
Operating Force, Torque0.54 ~ 0.64 N-m
Other Names360-3229
HS16-1SN-ND
HS16-1SN-RO
HS16-1SN-RO-ND
HS161SN
